Used Kubota DC70 688q 68HP Combine Harvester Rice Wheat Used Harvester for Sale

Product Description

Product Description:

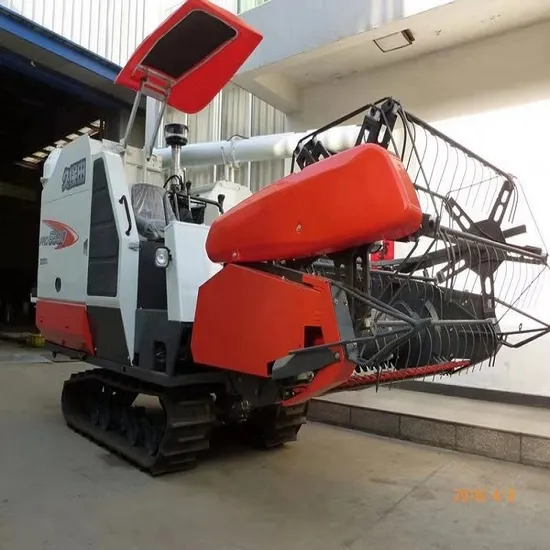

Used Kubota DC70 688q 68HP Combine Harvester
Condition: Kubota 4LZ-2.5(PRO688Q) full feed crawler harvester produced in 2018, 600-800h working time, good overall condition
Product advantages: In use, the Kubota 688 has a high horsepower and a high chassis, which does not produce a buried machine in the process of work

Technical Parameter

Product Name	KUBOTA HARVESTER 4LZ-2.5 (PRO688Q) DC70
Category	Collecting tank	Standard	Big tank
Dimension	L*W*H(mm)	4860 * 2295 * 2815	4950 * 2440 * 2800
Weight (kg)		2780	2790
Engine	Model		V2403-M-DI-T-ES04
	Pattern		Vertical 4 cylinder 4 stroke water-cooled direct injection turbo diesel
	Cylinder capacity (L[cc])		2.434[2434]
	Rated output/speed(ps[kw]/rpm)		49.2 / 68HP /2700
	Burnt oil		0#diesel
	Fuel tank capacity(L)		60L
Travel unit	Track	width*contact length(mm)	400×1680;450x1680
		Centre distance	1150
		Average ground pressure(kpa[kgf]/cm2)	0.21
	Minimum ground clearance(mm)		275
	transmission mode		Hytrostatic CVT change[HST]
	Speed grade		no class vice-speed 3 files
	Running speed	Advance (m/s)	Low speed:0~3.49 Standard speed:0~4.93 Walk speed:0~6.66
		Back off (m/s)
Harvest unit	Harvest height down range (mm)		40 more cutter tip
	Harvesting width(mm)		2000
	cutter width(mm)		1905
	Lodging adapation (degree)		Shun-cut:< 85°, Against the cut:< 70°
Threshing unit	Threshing teeth type		bow teeth
	Threshing System		axial threshing gear
	Diameter*width(mm)		Φ620×1790
	Rotational speed(rpm)		560
cereal discharge unit	capacity(L)	420	1000
	Tanigushi row number (a)	2	1
	Discharge mode	manual	hydraulic pressure
Suitable crops			rice / wheat
Operational efficiency (A unit of area/ hour)		0.20~0.53	0.20~0.40

Fast travel system
1. Reliable diesel engine
Kubota's own high power, low fuel consumption 49 2kw turbo diesel t-motor. Power is provided by a vertical water-cooled 4-cylinder turbo diesel engine system, which provides greater output power and starting torque with less fuel than conventional ball-type diesel engines.
2,Wide tracks
Wide tracks work more smoothly than ever in wet fields. 275mm ground clearance for less mud accumulation and better adaptation to rotten fields. Efficient threshing system - outstanding throughput and low losses
3. Large diameter long threshing drum
The longitudinal oil-flow threshing system features a long threshing drum with an extra-large 620mm diameter and a drum length of up to 1790mm for more efficient and precise harvesting and threshing operations.
Related Product:
Packaging & Shipping
Company Profile
Jiangsu Grande Machinery Manufacturing Co.; Ltd. focuses on paddy field stubble tillage rotary tiller and related implements. currently our products have been sold to Africa, South America, Europe, etc. Our company has 30 employees, 1000 square meters of office area and 7000 square meters of warehouse, Adhering to the principle of customer first, in order to supply better technical support and after-sales service, the company had established a technical department and after-sales service department in 2018.
Jiangsu Grande Machinery Manufacturing Co.; Ltd. to provide customers with professional paddy field operation machinery products.
FAQ
FAQ
1. What's the MOQ?
MOQ is 1 20GP, around 10 sets.
2. What's the after sales?
Our products' warranty is for 12 months. after that, we can still supply thel spare parts.
3. What's your lead time?
usually within 20 work days.
4. Are you interested in dealership with local company?
Yes, we are quite interested in this business. We'd like to cooperate with some local partner to sell more machines in local market and supply better service.
5. What's your Payment terms?
30% payment in advance by TT, 70% balance before delivery.

---
