Semi-Automatic Opening Flash Point Tester

Product Details

Product Description

Product Description

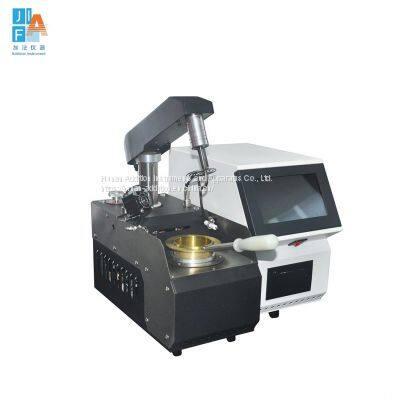

Semi-Automatic Opening Flash Point Tester
Product model: JF267
Product Introduction
The tester GB/T267 adopts the standard GB/T267 flash point test method, applies the microprocessor technology and advanced PID temperature control technology, the heating rate is fast, the temperature control is more accurate, and the test results are more accurate. The LCD large-screen English display replaces the redundant design of the original RS232 interface, the operation is simpler, and the instrument is more practical. The instrument has a high degree of automation and strong man-machine dialogue ability. With automatic atmospheric pressure correction, automatic lifting, automatic heating, switching, automatic ignition, automatic end point detection and automatic printing of test results, automatic air cooling, etc., the test process is fully automated, and the temperature exceeds the limit automatically stops detection.
Technical parameter
1. Display mode: LCD large screen display
2. Display content:
① Control temperature and expected flash point set temperature.
② Fault prompt screen.
③ Each model parameter and air pressure setting.
3. Measuring range: room temperature～400℃
4. Measurement accuracy: 0.1℃
5. Cooling method: forced air cooling
6. Operating temperature: 10～55℃
7. Use humidity: 30～80%
8. Accuracy: flash point error 6℃
Ignition point error 6℃
9. Repeatability: flash point error 12℃
Ignition point error 10℃
10. Power supply: AC 220V±5%, 50Hz
11. Power consumption: 380VA
12. Applicable standard: GB/T267
Main Feature
1. Fully automatic control by microcomputer, the whole test process and printing of measurement data are carried out automatically.
2. Large-screen English interface, the screen displays the test temperature, oil product number, test time, etc., the entire test process is clear at a glance.
3. The results can be printed by a micro-printer, and the cost is low.
4. The temperature is programmed by the microcontroller to ensure the accuracy of the results.
5. After the experiment is completed, the instrument can be automatically forced to air-cool.
6. The flame size can be adjusted by itself.
7. Automatic lifting system, easy to operate.
8. The shell is made of cold-rolled steel plate, and the surface is treated with electroplating and plastic spraying, which is easy to clean and anti-corrosion.
9. Both manual and automatic operations can be performed during the test (manual or automatic tests can also be selected).
10. Correction function: current date, time, temperature and current atmospheric pressure correction
11. The instrument has a protection program and a self-diagnosis program
12. The main electrical components of the control department and the measurement department are made of high-quality components, which ensures the reliability and stability of the instrument.
13. The instrument is compact, small and beautiful in appearance
14. High degree of automation: Set the flash point parameters according to the operation mode on the LCD screen, press the "Start" button, and the whole test process will be carried out automatically.

---
