| US$3,000.00-50,000.00 | 1 Set (MOQ) |

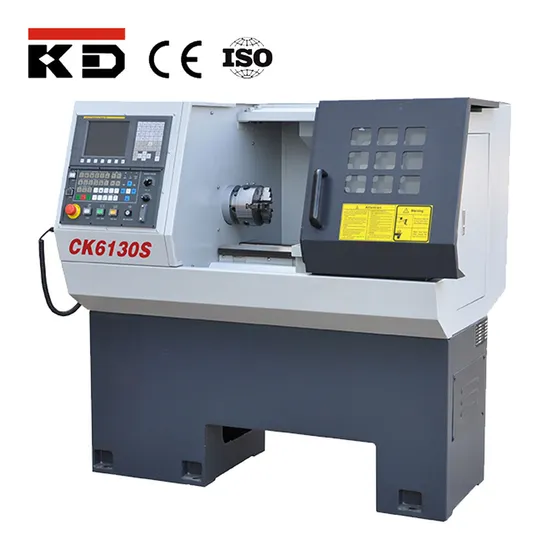

| MODELS | CK6130S | CK6140S | |
| CAPACITY | | ||
| Max.swing over bed | Ф300mm | Ф400mm | |
| Max.swing over carriage | Ф135mm | Ф225mm | |
| Max. length of workpiece | 500mm | 750/1000mm | |
| Max.turning length | 390mm | 700/950mm | |
| 6-way turret max turning length | 340mm | 590/840mm | |
| 6-way turret max turning diameter | Ф185mm | Ф300mm | |
| TRAVEL | | ||
| Max.cross travel(X) | 165mm | 235mm | |
| Max.longitudinal travel(Z) | 460mm | 740/990mm | |
| FEED | | ||
| Rapid feed for axis X | 8m/min | 8m/min | |
| Rapid feed for axis Z | 10m/min | 10m/min | |
| SPINDLE | | ||
| Spindle nose | D4 | C6 | |
| Spindle bore | Ф38 | Ф52mm | |
| Taper bore of spindle | M.T.NO.5 | M.T.NO. 6 | |
| Steps of spindle speed (manual) | Variable | Variable | |
| Range of spindle speed | 200~3500rpm | 200~2800rpm | |
| TOOL POST | | ||
| Tool post stations | 4-way | 4-way | |
| Tool cross section | 16×16mm | 20×20mm | |
| TAILSTOCK | | ||
| External diameter of tailstock sleeve | Ф50mm | Ф60mm | |
| Taper bore of tailstock sleeve | M.T.NO.3 | M.T.NO.4 | |
| Max.traverl of tailstock sleeve | 130mm | 120mm | |
| OTHERS | | ||
| Min. input | 0.001mm | 0.001mm | |
| Main motor power | 3kw | 3.7kw (optional: 5.5kw) | |
| Coolant pump power | 75w | 75w | |
| Overall dimensions(L×W×H) | 1500×945×1380mm | 2370×1200×1415mm | |
| Net weight | 1100kg | 1800/2000kg | |
