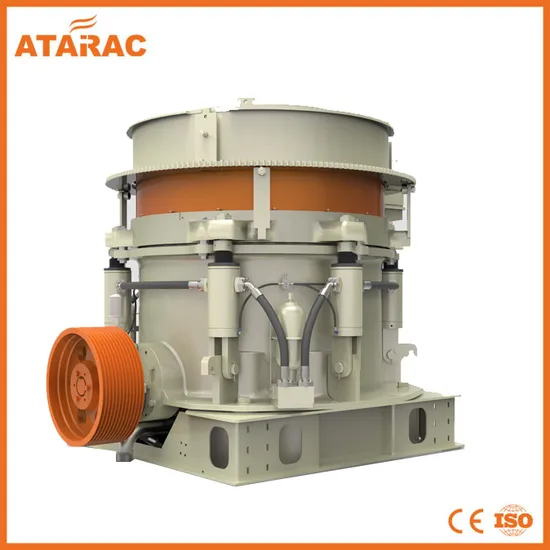

Mobile Hpy Rock Cone Crusher Machine (HPY300)

Product Description

HPY Multi-cylinder Hydraulic Secondary Cone Crusher possesses huge crushing power, which is suitable for crushing various medium hard and above materials for coarse and fine crushing. It features in high productivity, less operation cost, and easy maintenance.
Application Site:
Technical Parameter:

SPECIFICATIONS	MODEL	HPY300
	WEIGHT	19.5TONS(machine with Hydraulic station) 17.67(Machine)
	CLOSED SIDE SETTING	6MM-45MM
CAPACITY	75-430 T/H(BASED ON LIMESTONE)
MOTOR	MAX. POWER	220KW×1
MATERIAL	FRAME	ZG35
	MANTLE	HIGH MANGANESE STEEL
	BOWL LINER	HIGH MANGANESE STEEL
	SPHERICAL SOCKET	COPPER
	SPHERICAL BEARING	COPPER
CRUSHING CAVITY			FINE(MM)	MEDIUM(MM)	COARSE(MM)
	STANDARD	FEED OPENING	135	211	235
		MAX. FEED SIZE	108	169	200
		MIN. DISCHARGE OPENING	16	20	26
	SHORT HEAD	FEED OPENING	70	96	124
		MAX. FEED SIZE	70	96	124
		MIN. DISCHARGE OPENING	8	12	14

Unique Selling Point
(1) High Production Efficiency
(2) High Automation
(3) Wide Adaptability
(4) Low Running Noise And Vibration
(5) Lower Installation Cost
(6) Lower Operation Cost
Trail Running
To make sure the hydraulic secondary cone crusher is in good condition before delievery, we do trail running on each hydraulic secondary cone crusher. All working parameters are monitored by PLC system, so our technician can check if the vibrating, noise, temperature, pressure is in normal range or not.
Packing and Delivery
The hydraulic seconary cone crusher should be processed to be rustproof and moisture proof before delivery. The small parts are packed into wooden crates; the big parts are wrapped by plastic sheeting.
Costomer Service:
(1)Counseling
(2)Professional engineers make complete crushing solution against customers' requirement
(3)Operational personnel training
(4)Information and technique support
(5)Preventive maintenance and safety lecture
