CNC Cylindrical Grinding Machine with Wide Grinding Wheel Mc600t

Product Description

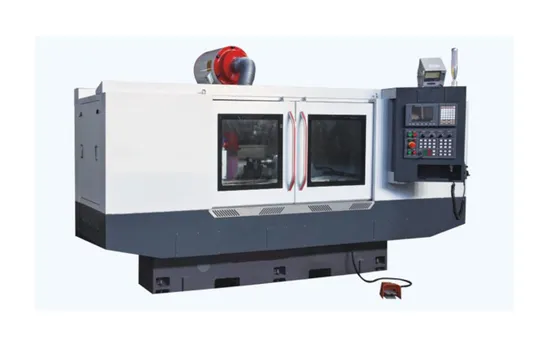

CNC cylindrical grinding machine with wide grinding wheel MC600T

Main functions and features:
1.MC600T CNC cylindrical grinder is a wide grinding wheel CNC machine tool product designed, developed and manufactured by our company. This series of machine tools is suitable for batch or mass production of shaft parts.The machine has simple operation, reliable performance and high processing accuracy.
2.The grinding wheel can be installed with a grinding wheel width of 200mm, which is suitable for grinding long shaft parts.
3.The grinding wheel spindle adopts high-precision dynamic pressure spindle.It has high rotation accuracy, high rigidity and long life.
4.Standard configuration adopts Taiwan's new generation CNC system (other systems can be configured according to customer needs)
5.Equipped with high-precision automatic measuring instruments to achieve closedRing automatic grinding cycle to ensure processing dimensional accuracy.
6.Has automatic dressing wheel and automatic compensation functions.

Technical Parameters:

Model No.	MC600T
Item No.
Specifications
Grinding diameter	Φ8~Φ320mm
Center distance	600 mm
Center height	180 mm
Max.weight of workpiece	150 kg
Table Z Axis
Table stroke	700 mm
Movement speed	0.01~8000 mm/min
Resolution	0.001 mm
Z-axis ACservo motor	5.9 kw
Maximum turning Angle of worktable	clockwise 7°
	counterclockwise 3°
Headstock
Workpiece spindle AC servo motor	3.1 kw
Center taper	5#
Headstock rotation possibility	impossible
Tail stock
Sleeve movement	50 mm
Center taper	5#
Driving mode	Hydraulic/double action
Wheelstock Xaxis
wheelstock motor	15kw Frequency conversion
X-axis AC servo motor	5.9 kw
movementspeed	0.005~8000 mm/min
resolution	0.001 mm
wheelstockstroke	275 mm
Linear speed	45 m/s
Wheel size	500mmx203mmx200mm
Machine weight	5500 kg
Machine dimension	3580x2320x1770 mm

FAQ
1.How can I choose the most suitable machines?
Please advice your technical requirements, or workpiece information or just send drawing, we can provide most suitable machine model information to you.
2.What's your main products of your company?
We specialized in all kinds of metal-working machines, such as CNC Lathe Machine, CNC Milling Machine, Vertical Machining Center, Lathe Machines, Drilling Machine, Radial Drilling Machine, Sawing Machine, Shaper machine, laser and so on.
3.Where is your factory located?
Production bases are in Canton, Jiangsu and Shandong.
4.What is your trade terms?
FOB , CFR and CIF all acceptable.
5.What's the MOQ?
1 SET.
6.Are you a manufacturer?
By collaborating of more than 10 years with selected manufacturers that possess different product advantages, integrating foreign demands, we have built out full range high quality product line which enjoy better pricing and lead time while we can execute production monitor and quality assurance, and we provide comprehensive high-quality pre-sales and after-sales services.
7.What's the Payment Terms?
T/T, 30% initial payment when order, 70% balance payment before shipment Irrevocable LC at sight.
8.How to get quotation?Place an order? How about the delivery time?
Just send us an inquiry or contact us with online service / WhatsApp advising your technical requirements or workpiece information, we will revert you shortly with our catalogue , quotation and other details you need. For standard models, lead time is around 30-60 days after payment received.
9.What service we can offer?
1). 12 months warranty.
2). Free technical support online service via email, telephone, video meeting etc.
3). On-site commissioning, testing and training service.
4). Spare parts and consumable parts supply and machine repair service.
5). All of the questions will be replied within 24 hours.

---
