Product Descriptionflame treatment machine TM-F4
/v_show/id_XNDE5MTU5MTM0NA==.html
bottle container the flame processor, Basketball board large flat flame processor, electric car shell Flame Treatment Machine, continuous PP tube Flame Treatment, car bumpers flame processor equipment.
Specifications:
| Frame width | 350mm |
| Burning Gas | LPG gas |
| Power | 220V/50Hz |
| Conveyor speed | 0 ~10m/min |
| Outline dimension | 2000X550X1250mm |
| Conveyor size | 2000X640mm |
| Combustion-supporting gas | Compressed air 8kg/cm2 |
| Package dimension | 2330X650X1100mm |
| Diameter range of the product treated | 150 ~350mm |
| Height range of the product treated | 20 ~450mm |
| Speed of conveyor | 1200~1800psc/hr |

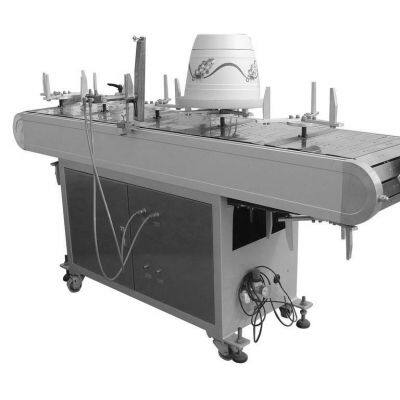

TM-F4 Flame treatment machine
Advantages:
1. Mainly used for the surface pretreatment of PE and PP plastic products.
2. Micro motor imported from Japan, stepless speed timing mode is adequate for different workpiece requirement.
3. The machine is two sides equipped with baffle-boards to improve the heat efficiency.
4. Advanced gushing nozzle is design generates a good combustion result, it is a product that saves energy.
5. According to the size of your product that is to be printed, replace the taper support to meet the different requirement of workpiece.
Original place:
1. Mainly used for the surface pretreatment of PE and PP plastic products.
2. With the design of two flame nozzles in order to make the treatment more equal.
3. According to the size of product that is to be printed, replace the taper support to meet the different requirements of workpiece.
Price Terms: FOB Shenzhen, China or CFR, CIF
Payment Terms: T/T
Packing: PLYWOOD CASE
Lead Time: 7 DAYS AFTER PAYMENT
SKU: 5 SET
Standards Certificate: CE
Cubic Meter : 1.9
Gross Weight: 150KG
Main Parts: Flame Treatment GUN
Application area: PP Bottle, plastic products
Payment Termsī¸° TT/Western Union
>>
