Paper Cup Machine Paper Glass Machine Disposable Paper Cup Forming Machine Price

Product Description

Product Description

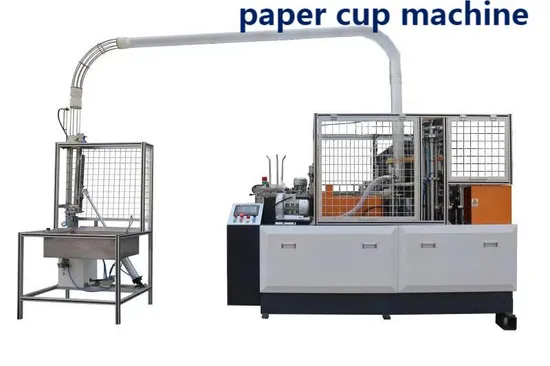

10 station gear paper cup machine CW-100
The working principle of our paper cup machine is that a main motor drives the whole machine to work, and realizes the perfect fusion of gear and cam structure.Now the machine uses a single aluminum disk instead of the previous three-disk machine, so that the machine failure rate is greatly reduced, and the training time for the operator is reduced.This machine has 10 stations, 10 stations grinding tools, fold against the flower preheating 5 groups of stations.The machine running speed is increased to 90-120 can be customized to 3-16oz single and double shower film paper cups according to the customer request.Is a fully automatic paper cup molding equipment, through multiple automatic paper, paper return device (ensure accurate positioning), ultrasonic or copper welding, mechanical paper cylinder transfer, oil injection, bottom, folding, preheating, rolling, cup, unloading continuous process, can stable production of different specifications of paper cup, is our company independent research and development after comprehensive technical improvement can improve the stability of the paper cup equipment.

Paper Cup Size	2.5-16oz
Paper Material	140-350g/m2,One Side PECoated Paper Or Double
Speed	Max Speed:110pcs/min,Stable speed:85-95Pcs/min
Power source	380V 50HZ
Heating total power	5KW
Total Power	7KW
Consumption Power	5kw/h
Weight	1800kg
Overall size	2000X1200X1900mm
Air pressure	0.3-0.5MPa
Operation person	1person
Opeartion space	About 3000*3000mm
Note	Can be customized according to your requirements

Detailed Photos
