US$19,800.00-20,600.00
|
1 Piece
(MOQ)
|
Basic Info.
Processing Technics
Hot Press
Pressing Shape
Flat Press
Platen Surface Pressure
High Pressure
Pressing Layer
Multi Layer
Controlling Mode
Artificial
Automatic Grade
Semiautomatic
After-sales Service
Free Service on Internet
Multi Layers
Three Layers
Heating Medium
Thermal Oil
Voltage
3 Phase 380V, 50Hz, or Customized
Delivery Time
20 Working Days
Shipping
20 Feet Container
Transport Package
PE Film
Specification
2500x1300mm/ 8.2′x4.26′
Production Capacity
10 Sets/ Month
Product Description

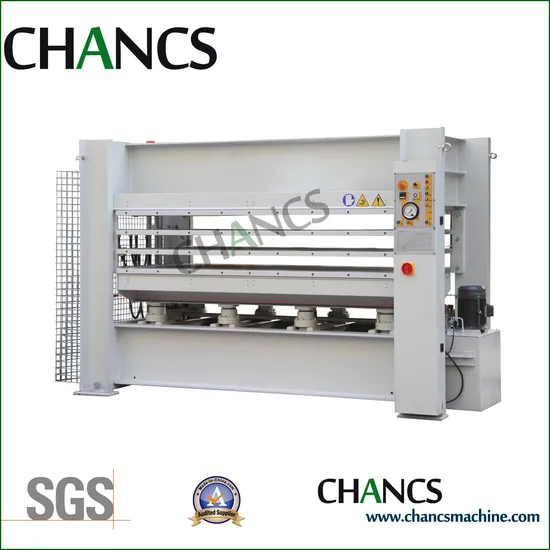

120T Three Layer Laminatin Hot Press Machine 1.Introduction:
120T Three Layer Laminatin Hot Press Machine is shorten of hot press, which is used for furniture or panel decorative factory in the progress of panel laminating, such as wooden door, core board, MDF, plywood, chipboard with all kinds of decorative paper, HPL or veneer. It can also be sued for veneer drying and leveling.
2.Parameter:
| HOT PRESS MACHINE |
| Model | BY214×8/12(3)H1RC |
| Total pressure | 1200KN |
| Working layer | 3 |
| Platen No.& Size | 4-2500x1300x42mm(Covered with mylar) |
| Max. Pressure | 3.7kgf/m2 |
| Platen opening | 120mm |
| Cylinder No.& Dia | 8 pieces x φ85mm |
| Max temperature | 120ºC |
| Heating way | Electric heating with thermic oil |
| Heating medium: | Thermic oil |
| Installation power | 4+0.75+48KW |
| Platen opening way | Automatically |
| Closing speed | 30mm/s |
| Loading way | Length side, Manually |
| Voltage | 3PE 380V 50Hz |
| Packing | Bare but properly secured |
| Gross Weight | About 7500.00 kg |
| Overall size | L3650xW1710xH2110mm |
| Container need | 1X20'GP |
| Delivery time | 20 working days |
| Gurantee | 1 year for machine frame, 6 months for electrical parts |
3.Detailed Images:
4.FAQ:
List some questions customers care about, if you have more quotations, please feel free to contact with us
1. Q:What's the MOQ?
R: One set will be ok.
2. Q:Provide customized machine Yes or NO?
R: Yes. We have professional designers and engineers to supply customized machines.
3. Q:What is payment terms?
R: 30%T/T in advance, the balance paid before shipment after insepction.
4. Q:What is warranty time?
R: One year.
>>
