Automatic Large Capacity Feed Tower Storage Bins for Pig Farm

Product Description

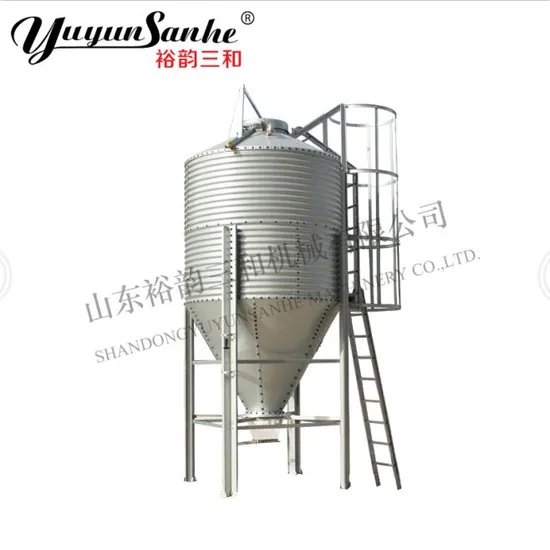

Feed Silo

Product Introduction:
Yuyun Sanhe feed silo is made of 275g/sqm hot-dip galvanized sheet and all screws are made of 8.8-level high-strength
hot-dip galvanized bolts, which are corrosion-resistant, anti-oxidation, high-temperature resistance, high strength, long
service life,and can withstand a strong storm. The feed silo is mainly composed of silo body, silo cover, mounting ladder, and silo legs etc. All parts are produced in strict
accordance with drawing design by using advanced laser equipment and precision molds, and then undergo strict quality
inspections to make each component more standard, more precise in size, and more convenient to install to ensure easy
assembly and use.
Technical Data:

Model	Diameter	Capacity (T)	Capacity (m³)	Height	Layers	Leg Numbers
SH-1800-1	1800	2.6	3.96	3418	1	4
SH-1800-2	1800	3.8	6.07	4231	2	4
SH-1800-3	1800	4.8	8.19	5042	3	4
SH-1800-1 (plus)	1800	2.6	3.96	3820	1	4
SH-1800-2 (plus)	1800	3.8	6.07	4633	2	4
SH-1800-3 (plus)	1800	4.8	8.19	5446	3	4
SH-2750-2	2750	11.5	15.8	5294	2	6
SH-2750-3	2750	13.8	20.6	6109	3	6
SH-2750-4	2750	17.1	25.5	6918	3	6
SH-3200-2	3200	15.5	23.11	5809	2	6
SH-3200-3	3200	22.5	29.63	6622	3	6
SH-3200-4	3200	24.05	36.15	7435	3	6

Product Details:

	Feed Inlet & Inlet Cover 1.Enlarged the top feed inlet for easy full of feed 2.The movable silo cover is made of 275g/sqm hot-dip galvanized sheet after one-time stretching. 3. The specially designed automatic elastic torsion spring control structure and the limit plate enable workers to open and close the cover freely on the ground, which is safe and convenient. 4. The cover fittings are all made of 304 stainless steel, high strength, no fracture, no rust.
Air Duct The roof sheet has an air duct, which can balance the air pressure inside and outside the silo, discharge various gases and heat, ensure smooth feeding and keep the silo inside clean.
	Observation Window 1. Transparent observation windows are respectively provided on the silo ring and the silo hopper. 2.The windows are made of plastic injection molding, with strong pressure resistance and good light transmittance, making it easy to check the storage status.
Ladder&Security Cage 1. The mounting ladder is molded from a whole piece of hot-dip galvanized steel plate with anti-skid design, which is firm and non-slip, good stability and convenient installation. 2. At the same time, it is equipped with a security cage, which is safe and reliable, and is convenient for observing the feed level and maintaining the silo.
	8.8 Grade Bolts The hopper sheets are fixed by 8.8 grade high-strength hot-dip galvanized bolts, and the exposed bolt part is equipped with a specially designed rubber nut, which is beautiful and does not rust

Optional Parts:
In order to meet the needs of feed transportation, the silo bottom is equipped with transparent hopper and silo boot.
The transparent material is convenient to observe the feeding situation.
Different of bottom cone bucket with silo boot can meet complex feed conveyor requirement
