China High Precision Metalworking Equipment CNC Milling Machine Xk7121

US$12,000.00
1-4 Sets
US$10,000.00
5+ Sets

Basic Info.

Model NO.
XK7121
Type
CNC Milling Machine
Object
Metal
Structure
Lifts
Milling Cutter Type
Vertical Milling Cutter
Controlling Mode
CNC
Automatic Grade
Automatic
Precision
High Precision
Certification
GS, CE, RoHS, ISO 9001
Condition
New
Name
High Precision Metalworking CNC Milling Machine
X/Y/Z Axis Travel
400/220/350mm
Worktable Size
660X210 mm
Motor Power
1.5 Kw
Weight (Kg)
650 Kg
Table Travel (Y) (mm)
220mm
Spindle Taper
Bt30
Delivery Time
One Month
Voltage
Customized
Range of Spindle Speed(r.p.m)
0-6000
Position Accuracy
0.02mm
Transport Package
Wooden Case
Specification
500x2100mm
Trademark
BETA
Origin
Shandong, China
Production Capacity
50 Sets Per Month

Packaging & Delivery

Package Size
145.00cm * 124.00cm * 189.00cm
Package Gross Weight
650.000kg

Product Description

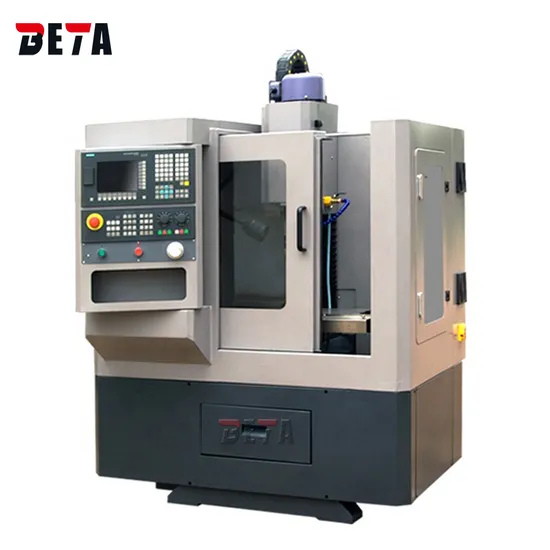

China High Precision Metalworking Equipment CNC Milling Machine Xk7121
Standard accessories:
GSK/Siemens CNC controller
X/Y/Z-axis linear guideway Taiwan HIWIN
1.5 kw spindle motor
BT30 spindle taper
Automatic coolant system
Lubrication system
Fully-enclosed protection cover
X/Y/Z axis travel 400x220x350mm
X/Y/Z feed motor power 0.75/0.75/1kw
table size 660x210mm
positioning accuracy 0.02mm
repeat posotioning accuracy 0.01mm
feeding speed 0.2400 mm/min
Feature:
Used for machining box parts, shell parts, disc-shaped parts
Dovetail guideway with plastic sticking, high rigidity, high stability and strong support
Pneumatically tool clamping
Items Unit XK7121
Table size mm 660x210
T slot (width*qty*space between) mm 3x14x63
X/Y/Z axis travel mm 400x220x350
Distance between spindle nose and table mm 45-375
Distance between spindle center and column mm 260
Max.speed of the spindle rpm 6000
Positioning accuracy mm 0.02
Repeat posotioning accuracy mm 0.01
Spindle taper - BT30
Main motor power kw 1.5
X/Y/Z feed motor power kw 0.75/0.75/1
Rapid feeding speed X,Y,Z axis m/min 8
feeding speed mm/min 0-2400
Min.set unit mm 0.001
Overall dimension mm 1450x1240x1890
N.W kg 650
