Wood Floor Sander Wide Belt Sanding Machine

Product Description

Woodworking Machinery Block Board Solid Wood Wide belt Planer Sanding Sander Machine.
Planer and sander machine is mainly used for solid wood board, panel, finger joined panel, door, flooring etc, with advanced technology, high precision, reasonable structure and easy operation.
1). Machine picture
2). Features --Imported planer roll, will be thick roll and soft roll (or a combination of sand frame), and then after the first planer sand polishing process.
--With floating pressure boots, short sand material available.
--Casting stop device is used to avoid rebounding and hurting the plate during processing.
--Conveyor belt drive adopts variable-frequency helical gear worm reducer, more stable and reliable.
3). Main parameter

Working width	1300mm
Min.Working length	500mm
Working thickness	3-110mm
Feeding speed	5-25m/min
Total motor power	80.05kw
Motor for first unit	22kw
Motor for second unit	30kw
Motor for third unit	22kw
Feeding motor	5.5kw
Lifting motor	0.55kw
Abrasive belt size	1330*2200mm
Working air pressure	0.6MPa
Volume of dust collection device	12000m3/h
Overall dimensions	3000*2000*2050mm
Net weight	4800kg

We also have 630mm, 1000mm, 1300mm working width planer sanding machine for your choice.
4). Details

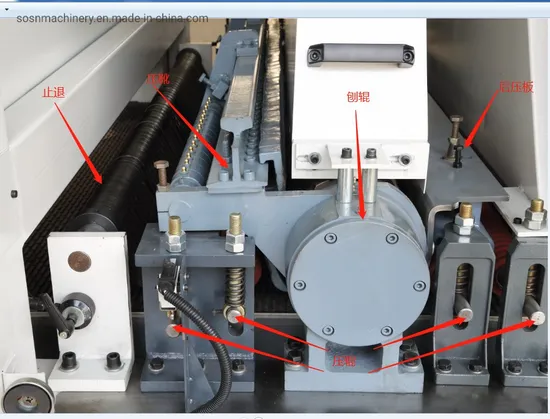

Inside structure of the sanding machine: one planer roller + one sanding roller + one sanding roller + one polishing pad.

5).Machine at workshop.
6). Package and delivery
7).Our factory
With rich professional exprience for woodworking machine, we sincerely welcome your visiting to our factory.
--Delivery:We can guarantee delivery on time.We also can sign on-time delivery contracts. If we can't deliver on time, we will give the product a corresponding discount.--Package:
After testing the sanding machine well, our workers will do cleaning work before package.
stretchy film for the whole machine and some spare parts which will also be seperatly packed well by strong stretch film.--Guarantee:The machine is guaranteed for 12 months .Within 12 months under normal using and maintenance, if the machine has something problem ,you will get spare part for free . More than 12 months,you will get the cost price for accessories. You will also get technical support and service all the time.--Technical support:Technical support by Phone, Email, Wechat, WhatsApp and Skype, 24 hours online.We provide English version manual and Operational video.Engineer available to service machinery overseas.--After sales services:Our machine is installed and tested well before delivery to you, when you get the machine, you just need to install it and then can operated, of course ,all of these steps our technician will give you professional help.
No worry for any installation or operation of this sanding machine, we are here to help you.
Heavy duty frame, Unique internal structure, top-brand spare parts, professional installation workers, in time after sale service, this machine surely can highly improve your working efficiency!
Please contact me now to start your working upgrading!

---
