| Model | 06-03-0144 |

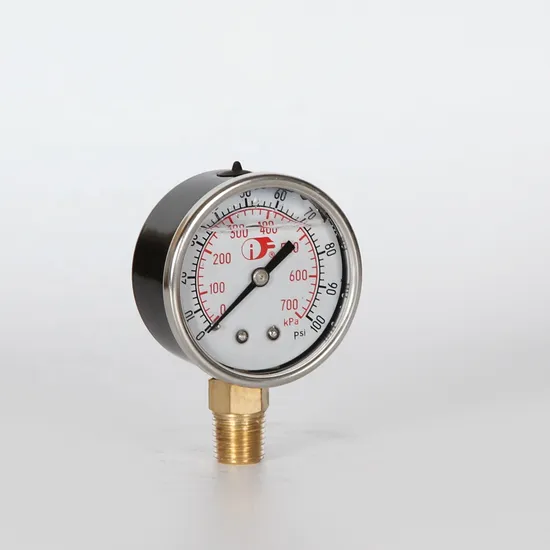

| Description | Liquid Filled /Liquid fillable Pressure Gauge |
| Application | Mailny used in petroleum chemical industry,liquid help to absorb vibration and pressure spikes, increasing the service life of the gauge |
| Size | 1.5"(40mm),2"(50mm),2.5"(63mm),3.5"(95mm),4" (100mm) and 6" (150mm) and Customized |
| Pressure Range | 15 to 15,000psi, vacuum, and compound |
| Socket | Brass,lower mount, Center back mount, or Lower back mount |
| Connection Thread | NPT , BSP, BSPT, PT, ZG, or other customized threads |
| Tube | Phosphor bronze, copper alloy |
| Case | Black steel |
| Bezel | Crimped-on SS bezel |
| Window(Lens) | Polycarbonate lens or safety glass lens |
| Liquid | Glycerine, silicone, oil fillable, or without liquid |
| Dial plate | Single or dual scale (psi, kpa, mpa, bar, kg/cm2) |
| Bracket | U-clamp & front flange is available |
| Accuracy | +/- 3/2/3% (ASME B40.1 Grade B); +/-1% (ASME B40.1 Grade 1A) |
| Ambient Temperature | Glycerin filled: 5ºC to 55ºC; Siliconee filled: -25ºC to 55ºC |
