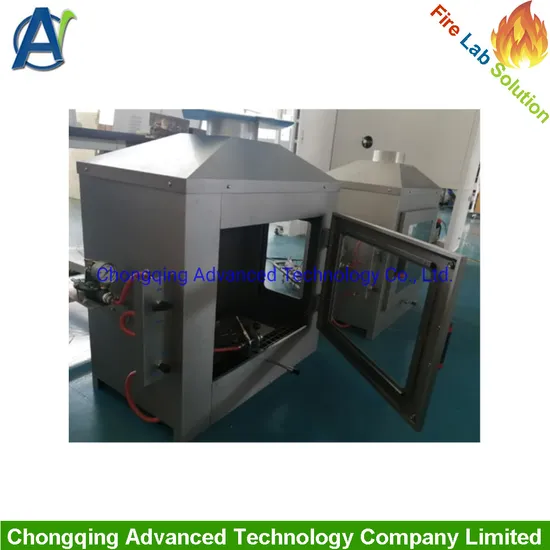

ISO 11925-2 Single Flame Source Tester for Ignitability Test

Product Description

Introduction: The Single Flame Source Tester is designed and manufactured in accordance with DIN 53438 & ISO 11925-2 standard.
It uses the German Kleinbrenner principle to determine the combustion properties of building materials under direct impact from a small vertical flame. It is applicable to building material categories of B, C, D, E, Bfl, Cfl, Dfl and Efl testing.
This Single Flame Source Tester also meets DIN 4102-Part 1-Class B2 test requirements.

Features:
The combustion chamber is made from corrosion resistant stainless steel, to maximize operating life.
The Single Flame Source Tester has large front and side doors for easy access. These are glazed with toughened glass for full view of the specimen during a test.
An extensively adjustable burner assembly, mounted on runners, to enable the small premixed flame to be tilted at an angle of 45degree to the specimen and offered to it in one fluid movement.
Specimen holder capable of housing the specimens up to and including 60 mm thick.
A fully adjustable specimen support frame facilitating lateral movement of the specimen holder so that the flame can be applied either at the specimen centre position, or at laterally spaced points.

Available Parts:

No.	Available Options
1	Multilayer specimen holder
2	Loose fill specimen holder
3	Anemometer 0-10 m/s range
4	Timing device with 0.2 sec divisions
5	Pressure reducing valve: Between 10 kPa and 50 kPa

Parameters:

No.	Item Name	SIT-M Single Flame Source Tester
1	Dimension	850 mm (W) X 450 mm (D) X 800 mm (H)
2	Weight	24kg
3	Power supply	110V AC 60Hz / 230V AC 50Hz, 10A
4	Ambient temperature	10 ~ 35 Centigrade
5	Gas Supply	Propane with a minimum purity of 95%

Factory overview
Customer Feedback
Germany
USA
Transporation
FAQ
1.What's the delivery time?
About 40 days.
2.What's your payment terms?
30% paid by T/T in advance,70% paid by by T/T before shipping.
3.What's your guarantee terms?
The warranty of all products is 1 year.During this period,we are responsible for all faults caused by us.And we can supply life-long technical support.
4.Can you supply training?
We can supply training in our factory and online training for free.If onsite installation and training are required,please pay for tickets,accommodation and salary USD150/Day for every person.

---
