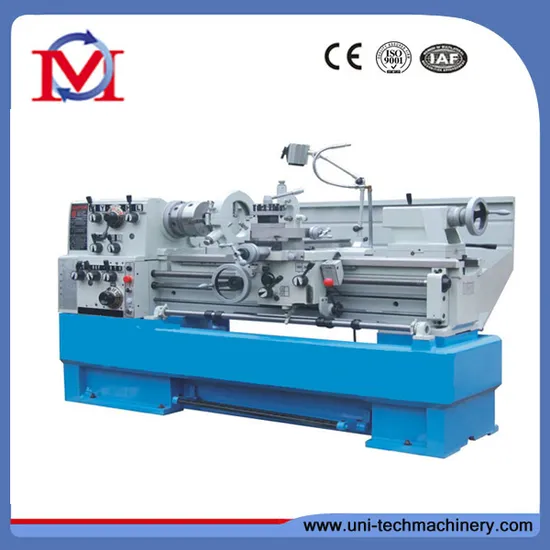

China Horizontal Gap Bed Lathe Machine C6246

Product Description

China Horizontal Gap Bed Lathe Machine C6246
Features:
1..Triple bearings supporting headstock spindle
2..Adjustable taper roller bearings providing spindle accuracy
3..Precision 'V'-beds & headstock gears are all hardened & ground
4..One piece cast iron base increases rigidity
5.Overload protection on drive motor and coolant system
6.Universal enclosed gearbox incorporating metric & imperial thread capabilities
7.Inching button incorporated on the control panel for convenient spindle speed selection
8.Foot operated spindle brake with safety cut out switch
9.300mm wide induction hardened heavy duty cast iron bed
10.Removable gap bed allowing work piece to swing up to 640mm
11.Chuck guard fitted with safety micro switch
12.Powered longitudinal and cross feeds
13.Adjustable 4 position length-stop mechanism for accurate repetitive operation
14.Dual calibrated dials incorporating metric & imperial graduations
15.Coolant system with flexible hose enabling operator to manipulate flow direction
16.Oil sight glass for head stock and gearbox
17.Low voltage halogen work light
18.Lubrication pump on saddle oiling slides
19.D1-6 camlock spindle for quick chuck removal
20.12 spindle speeds from 25-2000rpm
21.Large 58mm spindle bore
22.5.5kW / 7.5HP 415V main motor

SPECIFICATION

MODELS

C6241

GD41

C6246

GD46

CAPACITY

Swing over red

410mm(16")

460mm(18")

Swing in gap

640mm(25-1/8")

690(27-1/8")

Length of gap

155mm(6-7/8")

Distance between centers

1000mm(40")

1500mm(60")

1000mm(40")

1500mm(60")

Center height

1085mm

1110mm

Width of bed

300mm(11-13/16")

HEADSTOCK

Spindle nose

D1-6

D1-7

D1-6

D1-7

Spindle bore

58mm(2-1/4")

80

58

80

Range of spindle speed

12-STEPS, 25-2000RPM

FEEDS AND THREADS

of compound rest

120mm(4-3/4")

of cross slide

290mm(11-3/8")

Max.Section of tool

25×25mm(1×1")

Longitudinal feeds range

42 kinds 0.031-1.7mm/rev(0.0011"-0.0633"/rev)

Cross feeds range

42 kinds 0.014-0.784mm(0.00033"-0.01837")

Metric threads range

41 kinds 0.1-14mm

Inch threads range

60 kinds 2-112T.P.I.

Standard Accessories:
3-jaw &4-jaw Chuck
Change Gear Set
Reduction Sleeve
Dead Centers
Coolant system
Brake system
Tool box & tools 1 set
Follow Rest
Steady Rest

Optional Accessories:
--DRO
--Quick change tool post
--Chuck Guard

---
