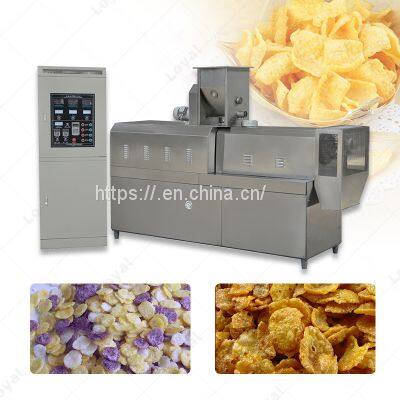

Product introduction of Corn Flake Production Line:
Corn Flake Production Line use corn flour and other cereals as main material, through mixing, extruding, flaking, drying, baking, coating and cooling, to get crispy flakes. It always service as breakfast cereal mixed with milk. This production system can also make other shapes of cereal such as rings, balls, curls etc.
Corn flakes processing line can produce breakfast cereal which is one kind of nutritional convenient food which is produced by this process line, using grist as basic material, with different shapes, such as granule, flake, animal, etc. One outstanding characteristic of the breakfast cereals is that it contains abundant compound carbohydrates and dietary fibre, strengthens lots of microelements, such as vitamin and mineral, and also can be added with cocoa and sugar, like honey and maltose. It can be drunk directly after mixed into coffee, millk, yoghourt or functional drink. Children can eat breakfast cereal as sweet crispy snack.
Machine Features of Corn Flake Production Line
1. Mixer : Make the corn residue or corn flour added to a nutritional additive and mixing a proportion of water uniformly.
2. Screw conveyor : Marinated raw material fed to the extruder feed hopper.
3. Double screw extruder: The material in the feed hopper into the extrusion system, to produce small spherical particles.
4. Vibrating feeder: Dispersed particles, to avoid overlap pressed together into a flaking machine.
5. Air conveyor: Transported the particles into the flaking machine.
6. Flaking machine: Flaking the corn ball to raw corn flakes.
7. Air conveyor: Transfer the corn flakes to the baking oven.
8. Mutil-layer oven: Oven mostly is toaster, temperature between 0-200 degrees, self-regulation through the control cabinet,internal stainless steel double mesh bag, baking time may be adjusted according to the speed, remove the water.
1
| Series of twin screw extruder consists of feeding system, extrusion system, rotary cutting system, heating system, driving system and control system, frequency control, high degree of automation, smooth operation, long service life. |
| 2 | The screw of twin screw extruder are made of the alloy steel and special craft, durably usage, high pressure, the screw life is longer. |
| 3 | Self cleaning, when stopping, it can be cleaned without disassembling. |
| 4 | Auto-temperature control system makes the temperature control more direct viewing and the parameter more precise. |
OUR SERVICE BEFORE AND AFTER PURCHASE
We provide customers with complete installation and operation manuals in English or other languages required by customers. Customers can use the same equipment to install and operate the machine.
If necessary, we can send our technicians to the customer to install the machine and charge a fee.
Our professional and technical personnel can install the machine and conduct trial production according to customer requirements.
Technicians can train operators to operate the machine at the customer site, and they will also train them to solve all problems so that they can easily manage everything without any problems in the future.
>>
