High-Speed and High-Power Motor Test Bench Motor Performance Test Equipment

Product Description

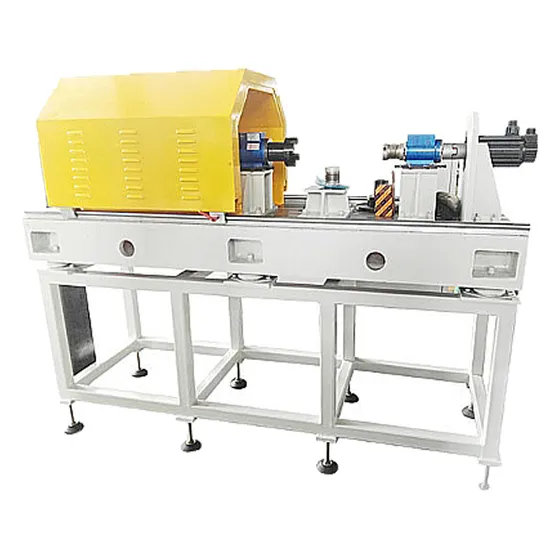

High-Speed and High-Power Motor Test Bench Motor Performance Test Equipment
Introduction of motor test bench:
The high-speed and high-power motor test bench (test system) can be used in various high-speed motor applications such as new energy vehicle drive motors, high-speed air compressor motors, and high-speed magnetic levitation motors. The installation platform can be designed according to the motor to be tested, and the end flange installation structure or the base installation structure can be selected.

The motor test bench is mainly used to test the motor's input voltage, input current (AC/DC), input power, power factor (AC); output torque (rated torque, blocking torque, starting torque, maximum torque, etc.), output speed, output mechanical power; efficiency; temperature rise, vibration, noise and so on. It can carry out type tests and factory tests to evaluate the comprehensive performance of the motor and provide an accurate parameter basis for the R&D, production, maintenance, and field application of the motor. Motor comprehensive performance test bench can test all kinds of asynchronous motors, synchronous motors, permanent magnet motors, AC motors, DC motors, new energy motors, and so on.

Main parts of motor test system:
The motor test bench mainly includes Dynamometer, control system, electrical parameter measurement system, mechanical structure, and monitoring software.
Major test items of motor test bench:
Power and torque characteristic test of motor with controller
Temperature rise test of motor with controller
Motor with controller locked-rotor test
Motor controller control strategy development verification test
Motor with controller maximum speed test
Braking regenerative energy feedback test of motor with controller
Motor external characteristic test
Development and matching optimization test of motor and controller powertrain
Performance test and calibration test of motor and controller powertrain
Efficiency map test
Accelerated response test
Torque response test
Endurance test of steady-state cyclic loading


Product Parameters

AC voltage measurement range	3.0-500V, precision: 0.5 grade
AC current measurement range	0.020/40.00A, precision: 0.5 grade
DC voltage measurement range	3.0-300V, precision: 0.5 grade
DC current measurement range	0.020/50.00A, precision: 0.5 grade
Power	I*U, precision: 0.5 grade
Torque measurement range	0.1-100N.m, precision: 0.5 grade
Speed measurement range	Max 8000r/min

Detailed Photos
