Hot Selling Full Servo Cup Mask Machine 3D Cup Disposable Mask Maing Machine

Product Description

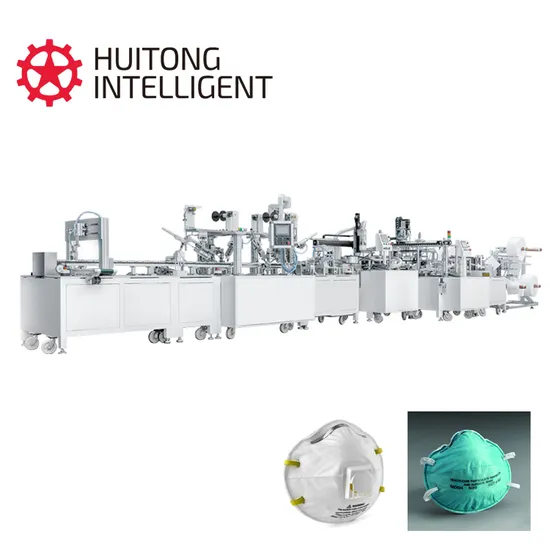

Automatic Cup Mask Machine
Automatic Cup Mask Production Line with Advanced Plastic Type Transfer System for Maximum Efficiency This machine is the front-end process module of the cup mask machine, which can be operated by a single person from raw materials to the output of the cup mask body, from non-woven outer fabric, middle layer melt blown fabric, inner layer cotton shaping, and cup body melt cutting. It is fully automated production. It can also connect the backend and packaging machine to form a complete production line.
Ready to embark on a lucrative venture in cup mask production? Discover the essential machinery you need to succeed!
Features:
1.This cup shaped mask making machine adopts PLC, touch screen control, main conveyor belt adopts imported servo motor transmission, accurate transmission, stable control, adjustable speed.
2.The whole line is fully automated, with a production speed of 15-25PCS per minute, and can be produced without shutdown during feeding.
3.Melt spray can be cold pressed, the product quality can reach FFP3 grade
4.Automatic paste sponge strip, accurate and beautiful position.
5.The equipment is easy to maintain, modular design, can be quickly spliced, to achieve rapid production.
6.The equipment size is small, 6500×1200×2000 mmcovers less area, convenient for air transportation.
7.Each module can be used separately, free combination
8.the processing workpiece aluminum alloy hard oxygen processing, the frame adopts cast iron welding, baking paint, beautiful, solid and not rust.
9.PLC(Mitsubishi PLC) programming control, high stability, low failure rate, less noise.
10.Adopt imported servo motor, imported pneumatic components, high precision.
11.The material size is small, photoelectric detection of raw materials, avoid mistakes and reduce waste.
12.The machine adopts pulley and fixed foot, which is convenient and fast to move, strong and fixed, and does not waver.
Technical Parameters :

Model No.	HT-KBL01
Speed	15-25 pcs/min
Output Power	20 kw
Power Supply	Ac380v 50/60hz
Air Pressure	0.6-0.8 mpa
Weight	5000 kg
Dimensions	10900 × 2100 × 2250 mm

Detailed Photos

Company Profile

Machinery Process diagram:
Exchange of foreign friends:
CERTIFICATE:

---
