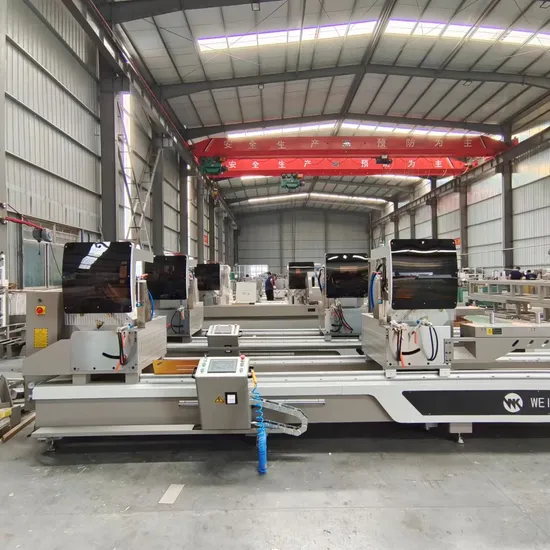

Aluminum Window Door Double Head End Cutting Machine

Product Description

Aluminum Window Door Double Head End Cutting Machine
Product Description
1.1 Used for cutting aluminum alloy, suitable for different area, such as window door, curtain wall profiles.
1.2 Saw blade rotates smoothly due to high accurate main spindle
1.3 The feeding system adopts the imported linear guide pair,with high accuracy and stability
1.4 Two saw heads are adjustable and cut the profiles in 45°,90°freely.
1.5 Auto-opening shield made the operation safety.
1.6 This machine uses CNC Control, moving cutting length and change saw head are all automatic. Have printing function, can print code or profile information. Product Parameters
Input power: 4.4kw+0.75KW (600 saw blade use 6KW+0.75KW)
Power supply: 380V/50Hz (Can make according your voltage)
Air pressure: 0.6~0.8MPa
Motor rotary speed: 2800r/min
Saw blade specification: φ500 φ600
Cutting angle: 90°45°
Cutting length: 290~6000mm
Cutting width*height
φ500 150*180mm (45 degree)
150*240mm (90 degree)
φ600 200*230mm (45 degree)
200*290mm (90 degree)
Overall dimension: 5800 x 1500 x 1700mm
Weight about: 1650kg / 2100kg
Detailed Photos

CNC Control, cutting length, cutting angle control are all automatic.
Transparent protective cover, dustproof.
Have printing function, so can print clients info and profile info.

Use planer to ensure the flatness of the mounting guild rails Guild is 40mm diameter, two guild distance is 700mm, More stable The machine inside design to slope, more easy for chips clean

Simultaneous processing of front and rear vertical panels at the same time, so can make sure concentricity, so precision more high


Most supplier the angle fix is point to point, may easy broken, we upgrade to point to face, so enlarge use time.

Right head and left head have own lubrication, so oil can be more average


The head always moving to cut different length profile. So the wireline and chain must be very good. We use High flexible shielded wire
The chain side is steel, and inside is aluminum, so alu avoid to wear wireline, and steel more strong.

Packaging & Shipping
Machines can be packed in wooden boxes and transported by bulk cargo, or directly transported by containers.

FAQ
Q1: Is the operation of the machine complicated?
A: Our machine design is simple, the user interface is friendly, and we provide detailed operation manuals and training services to ensure that users can quickly get started.
Q2: Does the machine support automated production**
A: Yes, our machines support automated production and can be integrated into existing production lines to improve production efficiency.
Q3: What is the energy consumption of the machine?
A: We adopt energy-saving technology to ensure that the machine operates efficiently while reducing energy consumption. Please refer to the product technical parameters for specific energy consumption data.
Q4: Does the machine support remote monitoring and maintenance
A: Yes, some models support remote monitoring and maintenance functions, and users can view the machine status in real time and perform fault diagnosis through their mobile phones or computers.
Q5: What after-sales services do you provide?
A: We provide comprehensive after-sales services including installation and debugging, operation training, regular maintenance, troubleshooting, and spare parts supply.
Q6: How long is the warranty period for the machine?
A: Our machines come with a 1-2 year warranty period. Please refer to the purchase contract or consult our customer service team for specific warranty policies.
Q7: How to contact after-sales service if the machine malfunctions?
A: You can contact us by phone, email, or online customer service, and our technical support team will respond and provide solutions within 24 hours.
Q8: Do you provide regular maintenance services?
A: Yes, we provide regular maintenance services to help customers extend the lifespan of their machines and ensure their efficient operation

---
