US$4,500.00-7,800.00
|
1 Piece
(MOQ)
|
Basic Info.
Milling Cutter Type
Angle Milling Cutter
Milling Cutter Structure
Indexable Type
Controlling Mode
Artificial
Precision
Normal Precision
Certification
GS, CE, RoHS, ISO 9001
Voltage
220V,380V,400V,415V
Table Size
1500*360/1370*360mm
Spindle Speeds Range
66-4540(Vertical 16 Step)Rpm
Distance From Spindle to Column
155-700mm
T-Slot Number Width Distance
3/18/80mm
Transport Package
Free Fumigation Plywood Packaging Steel Base
Specification
2600*2100*2300
Production Capacity
500 Pieces/Year
Product Description

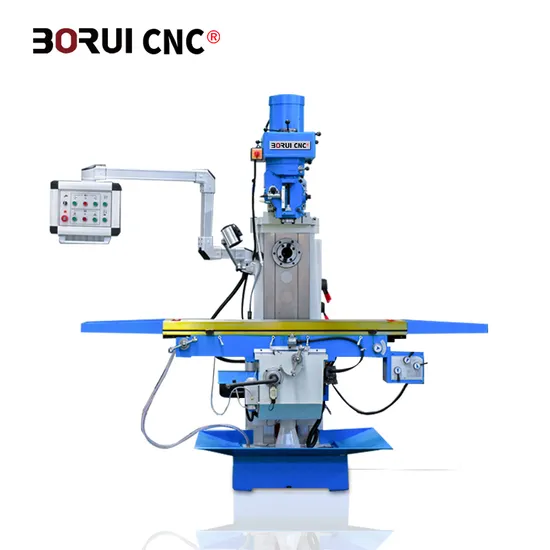

X6336 Ce Vertical Radial Turret Universal Milling Machine for Sale
Product Description
The product is easy to operate and reliable. Available for all kinds of cylindrical milling cutter, milling cutter, angle cutter, milling cutter and face Various plane, inclined plane, groove, etc.. If the use of appropriate milling machine accessories, can be processed gear, cam, arc groove
And other special shaped parts, such as the spiral surface, the configuration of universal milling head, round table, the worktable size of the machine can be further expanded,Large machine tool use range, according to user needs can be configured to display device.
The main specification :
SPECIFICATIONS OF TURRET RADIAL HEAD MILLING MACHINE X6336 |
SPECIFICATIONS | X6336 |
Spindle taper | ISO40(V) ISO50(H) |
Diameter of quill | 120mm |
Distance from spindle to table | 135-535mm |
Distance between spindle axis and boom | 230mm |
Distance from spindle to column | 200-700mm |
Spindle speeds | 80-7200r.p.m (V) 60-1800r.p.m(H) |
Spindle travel | 145mm |
Feeding of quill | (3step)0.04 0.08 0.15 |
Max.drilling capacity of auto-feeding | Ø10mm |
Head movement | ±45° |
Table size | 1250×360mm |
Table travel | 1000/320/400mm |
Feeding range of longitudinal.cross travel | 22-555mm/min(8steps) |
X,Y-axis rapid feed speed | 1080mm/min |
Z-axis Rapid feed speed | 590mm/min |
Z-axis motor power | 1.1kw |
Max.weight of worktable | 400kg |
T-slot Number/Width/Distance | 3/18/80mm |
Milling head moving(Vertical) | 7.5HP(V) 4kw(H) |
Cross slide way | 90W(25L) |
X,Y axis driving motor | 750W |
Overall dimension | 2220×1790×2360mm |
Packing size | 1800×1900×2250mm |
N.W/G.W. | 2450/2650kg |
Standard Accessories 1. Work lamp
2. Machine Vice
3. Milling Chuck
4. Draw bar
5. Tool & toolbox
6. Reduction sleeve
Optional Accessories 3-axis Digital Reading
Dividing Head
Rotary Table
Clamping Kits
The Turret Milling Machine advantage :
1.The milling machine Auto feed on two axis,motorized lift on Z axis
2.Hardening treatment,rectangular guide way
3.High speed turret milling head, high precision
4.The Universal milling machine structure of rectangular guide rail, the milling machine itself is more stable, more accurate.
Details Display
Company Profile
Packing shipping
For machine: usually by sea;
For documents: by international express, eg. DHL,TNT or EMS.
For packing :Free fumigation plywood packaging steel base
our service
1. Technical support online service provided.
2. Technical files service provided.
3. Machine operation video provided
4. On-site training service provided.
5.Spare parts replacement and repair service provided.
6 All of the questions will be replied within 8 hours
7. If you need to develop products with your own specification, we can help you to work it out.
8. Always be honest, never lie to customer, and never declare anything we don't have
Since 1996,20 years' history for machine tool manufacturing
10 years' history for export
Total 2 manufacturing bases in china
Sino-germany technology cooperation
Production of 8 categories, more than 130 kinds of products
Set up design&research center at TAIWAN
Exported to total 48 countries in the world covered most areas
One-stop shopping for nearly all other types' machine tools
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
5: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
>>
