Model NO.
HPA-W47(400-2700MHz)
Receive Frequency
400-2700MHz
Transmission Rate
≥20Kbps
High Temperature
Protection
Specification
175x110x25mm
Production Capacity
500/Month
Product Description
Feature: Output Power is stable more than 50W over -20~85ºC Output Power is stable more than 50W over 400-2700MHz ALC control function VSWR Protection High Temperature Protection and re-start when temperature low down. Protect high-power-voltage(36VDC) and low-voltage(22VDC)

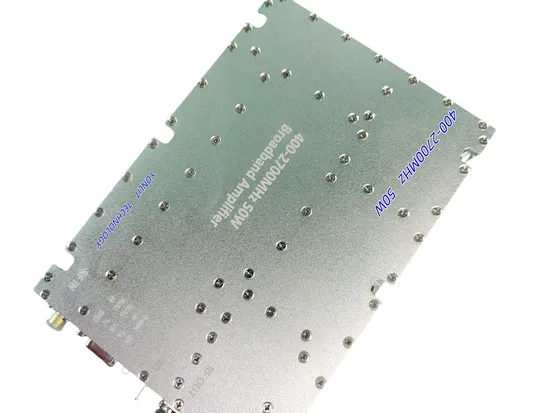

HPA Wideband 400-2700MHz 50W
| No. | Item | Requirements |
| 1 | Frequency Range | 400-2700MHz or Customized |
| 2 | Pout | >50W |
| 3 | Max undamaged Pin | >10dBm |
| 4 | Pin range | 0-5dBm |
| 5 | Small signal Gain | >47dB ±2dB |
| 6 | Harmonics | >10dBC @ Odd Harmonics; >12dBC @ Even Harmonics |
| 7 | Spurious | >60dBC |
| 8 | IN/OUT VSWR | 1.5 , 50 Ohm |
| 9 | Working Current | 28VDC±1V, <7A |
| 10 | RF IN Port | SMA - Female |
| 11 | RF OUT Port | N-Female |
| 12 | Dimension | About 170*120*25mm (Exclusive Connector) |
| 13 | Power Supply Port | Pull-core Capacitor |
| 14 | Working Temperature | -20----+60ºC |
| 15 | Protection | Over-temperature 75ºC, and Over-VSWR |
I/O Port (DB15 Female)
| DB15 | Description | IN/Out (D/A) |
| PIN7 | Pr | Reversed RF Power Indicator (V) | Out, Analog |
| PIN10 | Pf | Forward RF Power Indicator (V) | Out, Analog |
| PIN11 | EN | 0V or hanging: PA on; 5V: PA off | IN, Data |
| PIN12 | TA | Alarm(5V) over High-Teperature and PA shutdown | Out, Data |
| PIN13 | VA | Alarm(5V) over High-VSWR and PA shutdown | Out, Data |
| PIN14 | Tc | 0.5V +Tc *( 0.01V/ºC) | Out, Analog |
| PIN15 | GND | GND | / |
| PIN1-5, PIN6,8,9 | Nc. | / |
>>
