Basic Info.
Maximum Lifting Height
10-15m
Maximum Lifting Weight
>16t
Max Oil Flow of Hydraulic System
60 L/ Min
Max Lifting Moment
330kn.M
Outrigger Span
2330-5630mm
Boom Type
Knuckle boom Crane
Keywords
crane dump truck
Max Lifting Capacity
16.5t
Application
Construction Usage, Workshop Usage, Container Usag
Transport Package
Nude or Customized
Production Capacity
35 Unit/Units Per Month
Product Description
Hubei Jiaheng Technology Co., Ltd
Hubei Best Crane Co., Ltd
(Truck Crane Professional Manufacturer)
Web: hbjh2013.en.made-in-china.com
Our advantages:
1).Use HG785 international standard high-strength steel to reduce the weight of crane.
2).The boom of the knuckle crane is used hexagonal structure,reducing the lateral.
3).Italian brand of balance valve,hydraulic lock,operated valve,hydraulic pump and other core parts
to ensure the micro-mobility,security and stability.
4).Parker brand oil seal and gasket for hydraulic pump.
5).Brand scanreco remote control operate from Sweden.

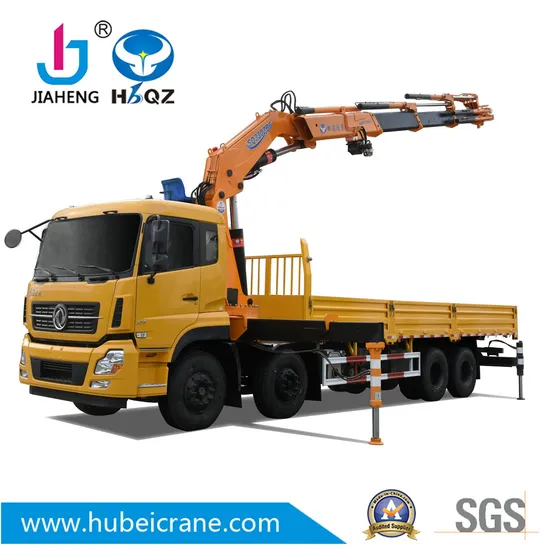

6).The factory is SGS certificated. Product Show:
Parameters:
| Model # | SQ330ZB4 /knuckle crane 10.65ton at 3m |
| Max Liftingmoment | 330Kn.m |
| Max Lifting Capacity | 10650kg/ 3.0m |
| 5400kg/ 6m |
| 2800kg/ 9.6m |
| 2200kg/ 11.4m |
| Max Lifting Height | 13.8m |
| Max Working Radius | 11.4m |
| Boom Section | 4 stages |
| Rotation Angle | 360°All Rotaion |
| Rated Working Pressure | 28mpa |
| Oiltank Capacity | 120L |
| Related Oil Flow | 60 L/min |
| Outrigger Span | 2330-7100mm |
| Outrigger | 4 ,adjustable, Hydraulic operating. |
| Crane Weight | 4800kg |
| Installation Space | 1470mm |
| Swingtype | Planetary gear reduction |
| Safety Device | Load Indicator, Hydraulic Safety Valve, Counter Balance Valve, Automatic Swing Brake, Hook Safety Device. |
| Options | Aux.winch,Aux.Boom,Remote control |
| Material | HG785D |
| Truck for reference |
| Truck brand | Dongfeng (other truck brand can be customized) |
| Cabin | Driving type: 6x4, Left hand drive (Right hand drive type can be customized) |
| Color is optional |
| Vehicle Main Dimensions | Overall size (L x W x H) | 11950x2490x3850mm |
| Wheel base | 5850+1350 mm |
| Cargo Body | 8400*2300*550mm |
| Weight in KGS | GVW | 25000 kg |
| Tare weight | 16250kg |
| Front axle loading capacity | 2 x 2500 kg |
| Rear axles loading capacity | 2 x27500 kg |
| Engine | Type | Diesel, 4-stroke direct injection, 6-cylinder in-line with water cooling, turbo-charging and inter-cooling |
| | Horse Power | 240HP (177kw) |
| | Max Torque | 1000N.m |
| | Emission standard | Euro V |
| Max Speed | 102 km/h |
| Gearbox | manual gearbox with 9 forwards & 1 reverses, with PTO |
| Tire | 11.00R20 11 pieces including one spare tire |
Hubei Jiaheng Technology Co., Ltd
Hubei Best Crane Co., Ltd
(Truck Crane Professional Manufacturer)
Web: hbjh2013.en.made-in-china.com
>>
