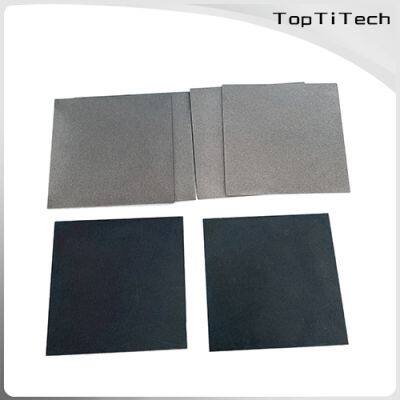

The production of PTL (porous titanium sintered plate) is a key component in the manufacture of hydrogen production electrolyzers. PTL is a type of electrode material that is used to catalyze the reaction that produces hydrogen gas from water.
To produce PTL, fine titanium powder is first mixed with a binder and then pressed into a green sheet. The green sheet is then sintered at high temperatures to create a porous, three-dimensional structure with a high surface area.
The resulting PTL porous titanium sintered plate is then coated with a catalyst material such as platinum or iridium, which helps to increase the efficiency of the hydrogen production reaction.
The PTL porous titanium sintered plate is a critical component in the construction of hydrogen production electrolyzers, which are used to produce hydrogen gas for a variety of industrial and commercial applications. These electrolyzers use an electric current to split water molecules into hydrogen and oxygen, with the PTL electrode serving as the catalyst for the hydrogen production reaction.
The parameters of PTL (porous titanium sintered plate) used in hydrogen production electrolyzers can vary depending on the specific application and design of the electrolyzer. However, some common parameters for PTL porous titanium sintered plates used in hydrogen production electrolyzers include:
1. Porosity: The porosity of the PTL porous titanium sintered plate is an important parameter that determines the surface area available for the hydrogen production reaction. Typically, PTL plates have a porosity of around 30-50%, which provides a large surface area for efficient hydrogen production.
2. Pore size: The size of the pores in the PTL plate can also affect the efficiency of the hydrogen production reaction. Generally, PTL plates have pore sizes ranging from 1um to 100um, depending on the specific application.
3. Thickness: The thickness of the PTL plate can vary depending on the design of the hydrogen production electrolyzer. TopTiTech can customize the thickness from 1mm to 3mm.
4. Catalyst loading: The amount and type of catalyst material used to coat the PTL plate can also affect the efficiency of the hydrogen production reaction. Typically, platinum or iridium catalysts are used, with loading levels ranging from a few micrograms per square centimeter to several milligrams per square centimeter.
The PTL (porous titanium sintered plate) used in hydrogen production electrolyzers has several key features that make it an effective catalyst for the hydrogen production reaction. Some of the features of PTL porous titanium sintered plates include:
1. High surface area: The porous structure of the PTL plate provides a large surface area for the hydrogen production reaction to occur, increasing the efficiency of the reaction.
2. Corrosion resistance: Titanium is highly resistant to corrosion, making PTL plates suitable for use in harsh industrial environments.
3. High conductivity: The conductive nature of the PTL material helps to facilitate the electron transfer reactions that occur during the hydrogen production process.
4. Tailorable porosity: The porosity of the PTL plate can be tailored to suit specific applications, allowing for greater flexibility in the design of hydrogen production electrolyzers.
5. Durable and long-lasting: The high strength and durability of PTL plates mean they can withstand the harsh conditions of hydrogen production over long periods of time.
6. Effective catalyst: PTL plates are typically coated with a catalyst material such as platinum or iridium, which helps to increase the efficiency of the hydrogen production reaction.
The PTL (porous titanium sintered plate) used in hydrogen production electrolyzers has several important applications in various industrial processes. Some of the common applications of PTL porous titanium sintered plates include:
1. Hydrogen production: PTL plates serve as the catalyst for the hydrogen production reaction in electrolyzers, splitting water molecules into hydrogen and oxygen using an electric current.
2. Fuel cells: PTL plates are also used in fuel cells as an electrode material, facilitating the chemical reactions that produce electricity from hydrogen and oxygen.
3. Water treatment: PTL plates are used in water treatment applications to generate hydrogen peroxide or ozone for use as a disinfectant or oxidant.
4. Electrochemical synthesis: PTL plates can be used in various electrochemical synthesis processes to facilitate the production of chemicals and materials such as chlorine, caustic soda, and hydrogen peroxide.
5. Environmental remediation: PTL plates are used in environmental remediation applications to degrade contaminants such as chlorinated solvents and pesticides.
Overall, the PTL porous titanium sintered plate is a versatile and important component in various industrial processes, providing efficient and reliable catalytic performance in a variety of applications.
Package and Shipment
1. Titanium Plate Sintered Filters are usually packed in cartons, wrapped in soft film, and fixed in a box filled with industrial foam cotton, and the outer baler is packed with plastic bags with no damage during transportation.
2. Wooden box export packaging can also be customized. The foam cotton can be filled and fixed, the external box is sealed, the bottom is specified, the whole packaging is processed, and the goods can be delivered to the designated place of the customer without damage.
