High Quality Electric Power Trowel From China Factory

Product Description

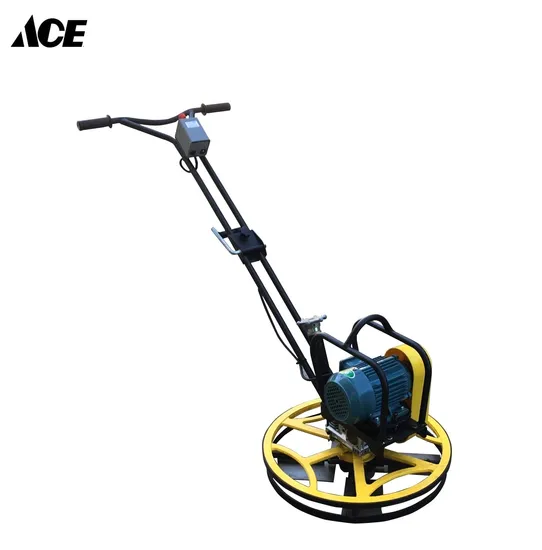

380V Electric Motor Power Trowel with 4 Blades for Sale
The ACE Walk Behind Power Trowel enables the professionaly finisher to achieve greater productivity.We carry a wide range of walk behind power trowels working diameter form 600mm to 1200mm .With the widespread acceptance of the adjusting system that rates flatness,the large gearbox provides torque needed for floating and high speeds need for finishing .When choosing a walk behind power trowel you must consider how big of an area you are trying to cover,the type of concrete mix,weather conditions,and if there are any obstructions and narrow doorways.
power trowel is used to create a level, smooth finish on a large, flat area of concrete, such as an interior floor, or a poured patio slab for a deck. They use single or multiple blades that rotate in a safety cage. Use a pushable concrete power trowel or riding model based on the size of your job. Blades measure from 24 to 46 inches long and come in three types: floating, finish and combined.
Product Uses

PRODUCT DESCRIPTION

1. Independent rotating flywheel, allowing operation in tight corners and in confined spaces.
2. Foldable handle for easy transportation and storage.
3. Lifting hook is available as standard.
4. Over-built gearbox assure long service life.
5. Heavy-weight design to assure a superior finish.
6. Height adjustable handle, assures operator comfortable and easy control.
7. Centrifugal saftely switch, shuts the engine down in the event of the opertor loosing control.
8. Screw control ensures precise blade adjustment.
9. Throttle control is available as optional.

TECHNICAL SPOECIFICATION

TECHNICAL SPOECIFICATION

Model	HMR-60
Engine Model	HONDA GX160	Lonxin GF200	Robin EY20
Engine type	4-stroke 25°Single-cylinder with Air-cooled
power	5.5HP	6.5HP	5.0HP
Working speed	70~130 RPM
Pan Diameter	600mm
Working Width	600mm
Blade size	230*150mm (9 *6")
Cluth type	Automatic centrifugal clutch
N.W / G.W	68KGS /78KGS
Packing size	67X 67 X 75 CM	67X 67 X 75 CM	67X 67 X 80 CM
Optional Engine	B&S 5..0HP/6.5HP	Kohler Ch260 6.0HP	EX17 6.0HP

ASSEMBLY LINE

ASSEMBLY LINE

Packaging & Shipping

PACKING PICTURE

Factory

Hot Products

Excavator	Surface Finishing Screed	Concrete Vibrator	Power Trowel
Remote Control Trowel	Concrete Mixer	Plate Compactor	Compactor Machine
Drywall Sander	Steel Bar Cutter	Vibratory Roller	Steel Bar Bender

FAQ

FAQ

1. Do you guarantee safe and secure delivery of products? Yes, we always use high quality export packaging. We also use specialized hazard packing for dangerous goods and validated cold storage shippers for temperature sensitive items. Specialist packaging and non-standard packing requirements may incur an additional charge.

2. Can you supply the relevant documentation? Yes, we can provide most documentation including Certificates of Analysis / Conformance; Insurance; Origin, and other export documents where required.

3. What is the average lead time? For samples, the lead time is about 7 days. For mass production, the lead time is 20-30 days after receiving the deposit payment. The lead times become effective when we have received your deposit, and we have your final approval for your products. If our lead times do not work with your deadline, please go over your requirements with your sale. In all cases we will try to accommodate your needs. In most cases we are able to do so.

---
