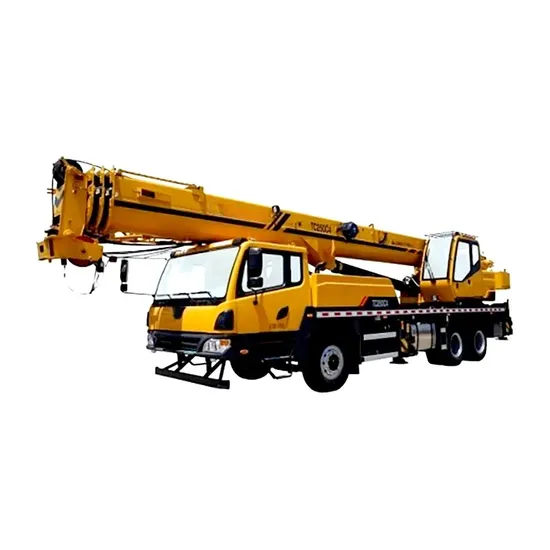

55T Chinese Brand Grua Montada En Camion 2 Ton To 20 Ton Grua De Brazo Recto TC600C5 1.Double-axle drive is used, providing good traffic ability and comfortableness under complex road condition with reliable traveling performance.Engine has the multimode power output function, which reduces power consumption.The use of tipping over early-warning technology provides high stability and safety of the overall operation. 2.Electrical proportion Hydraulic system load feedback, piston pump, electrical controlled valve and constant power control are applied to provide strong lifting capacity and good micro-mobility.Unique steering buffer design is adopted to ensure stable braking operation. 3.Five-section boom of high strength steel structure and optimized U-shaped cross reduces weight significantly with higher safety rates.Jib mounting angles are 0°, 15°and 30° which ensures fast and convenient change-over between different operating conditions so as to improving working efficiency of the machine.
company name : Tewrex Suzhou subsidiary Address: Room 602, Building 2, Tiandu Building, No.211 Changjiang Road, High-tech Zone, Suzhou City Product Parameters
| Main arm length | 8000-25100 mm |
| Engine rated power | 115kW@2600rpm |
| Maximum rated lifting weight | 8.5 t |
| Maximum lifting moment of basic boom | 271 kN·m |
| Overall length | 9900 mm |
| Overall width | 2400 mm |
| Overall height | 3125 mm |
| Total mass of the whole machine | 12100 kg |
| Front axle load | 3920 kg |
| Rear axle load | 8180 kg |
| engine model | WP4.1Q160E50 (National V) |
| Maximum engine power | 115kW@2600rpm |
| Engine maximum output torque | 520N·m@1200~1800rpm |
| Maximum travel speed | 90 km/h |
| Minimum turning radius | 8.5 m |
| Approach angle | 20 ° |
| Departure angle | 14 ° |
| Maximum grade | 0.34 |
| Fuel consumption per hundred kilometers | 20 L |
| Maximum rated total lifting capacity | 8.5 t |
| Turntable tail radius of gyration | 2.5 m |
| Maximum lifting moment (basic boom) | 271 kN·m |
| Maximum lifting moment (longest main boom) | 161 kN·m |
| Outrigger span (horizontal×vertical) | 4.4×4.39 m |
| Basic boom length | 8 m |
| The longest main boom length | 25.1 m |
| Longest main boom + auxiliary boom | Without jib m |
| Maximum speed of single rope of main winch (no load) | 115 m/min |
| Maximum speed of auxiliary winch single rope (no load) | 115 m/min |
| Boom fully extended/retracted time | 45/25 s |
| Full lifting/falling time of boom | 29/40 s |
| Swing speed | 0~2.8 r/m |
