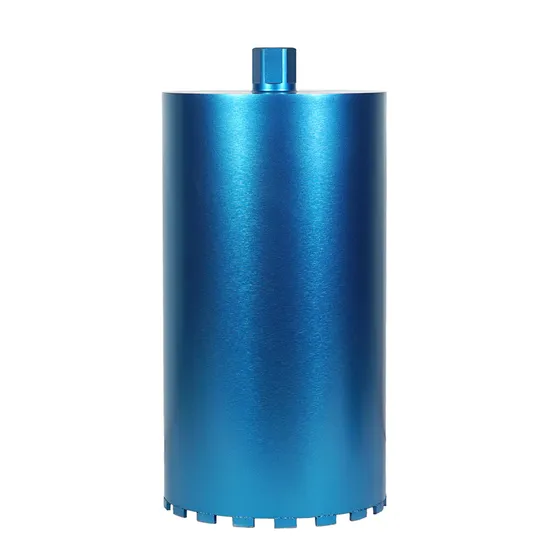

Laser Welded Diamond Core Drill Bit for Reinforced Concrete Dry & Wet Fast Speed Drilling

Product Description

Manufacturer technology: laser welded.
Application: wet drilling concrete, reinforced concrete, granite, masonry with superior efficiency.
Features:
* Very good sharpness achieve fast drilling, especially very fast when drilling with rebar meanwhile.
* Provide 20% higher drilling performance in the widest range of heavily reinforced concrete, particularly in difficult operating conditions.
* Drilling stable with small wobbling.
* 16" and 18" drilling depth standard
* Superior cutting speed and long life in a variety of applications.
* Laser welded up to 20".
* Sharp "roof top" segments and "flat top" segments standard on 2" to 20" diameter.
Specifications:

Core Drills for Wet Use
Diameter	Segments size	Thread	Drilling Depth	Quality Grade	Cutting materials
42mm	22*3.5*10	1- 1/4" UNC 1/2" BSP M14 M16	450mm	Pro.	Reinforced concrete
52mm	24*3.5*10		450mm	Pro.	Reinforced concrete
62mm	24*3.5*10		450mm	Pro.	Reinforced concrete
72mm	24*3.5*10		450mm	Pro.	Reinforced concrete
82mm	24*3.5*10		450mm	Pro.	Reinforced concrete
92mm	24*3.5*10		450mm	Pro.	Reinforced concrete
102mm	24*3.5*10		450mm	Pro.	Reinforced concrete
112mm	24*3.5*10		450mm	Pro.	Reinforced concrete
122mm	24*3.5*10		450mm	Pro.	Reinforced concrete
127mm	24*3.5*10		450mm	Pro.	Reinforced concrete
132mm	24*3.5*10		450mm	Pro.	Reinforced concrete
142mm	24*4.0*10		450mm	Pro.	Reinforced concrete
152mm	24*4.0*10		450mm	Pro.	Reinforced concrete
162mm	24*4.0*10		450mm	Pro.	Reinforced concrete
172mm	24*4.0*10		450mm	Pro.	Reinforced concrete
182mm	24*4.0*10		450mm	Pro.	Reinforced concrete
200mm	24*4.0*10		450mm	Pro.	Reinforced concrete
225mm	24*4.5*10		450mm	Pro.	Reinforced concrete
250mm	24*4.5*10		450mm	Pro.	Reinforced concrete
300mm	24*5.2*10		450mm	Pro.	Reinforced concrete
350mm	24*5.2*10		450mm	Pro.	Reinforced concrete
400mm	24*5.2*10		450mm	Pro.	Reinforced concrete
450mm	24*5.2*10		450mm	Pro.	Reinforced concrete
500mm	24*5.2*10		450mm	Pro.	Reinforced concrete
550mm	24*5.2*10		450mm	Pro.	Reinforced concrete
600mm	24*5.2*10		450mm	Pro.	Reinforced concrete

Company Information:
WUHAN WAN BANG LASER DIAMOND TOOLS CO., a dynamic company, driven by a team of experienced Doctor and Master specialized in powder metallurgy and laser welding technology, was established in 1999.
As a leading manufacturer in professional diamond tools, Wan bang specialized in producing and developing all kinds of diamond tools, which have wide range of applications in architecture, stone process, decoration and highway project, etc.
As a ISO9001: 2000 certified company, Wan bang has very strict quality control system, all products exported to the U. S. A., Germany, UK and many other countries, and enjoy very good reputations in the mainstream market.
Our product including: Laser welded diamond concrete saw blades, asphalt saw blades, granite cutting disc, diamond core drill bits, diamond grinding cup wheels and grinding shoes, diamond wall saw blades, floor saw blades, ring saw, wire saw, tuck point blades.

---
