US$20,000.00-50,000.00
|
1 Piece
(MOQ)
|
Basic Info.
Type
Vertical Construction Hoist
Lift Mechanism
Rack and Pinion
Deceleration Device
With Deceleration Device
Attendant
Without Attendant
Rated Loading Capacity(Kg)
2*3200kg
Dimension(L*W*H)
4*2*2.5m
After-Sales Service Provided
Engineers Available to Service Machinery Overseas
Packaging Details
as Your Required
Transport Package
as You Request
Production Capacity
3000 Sets Per Year
Product Description
https://editor.made-in-china.com/product

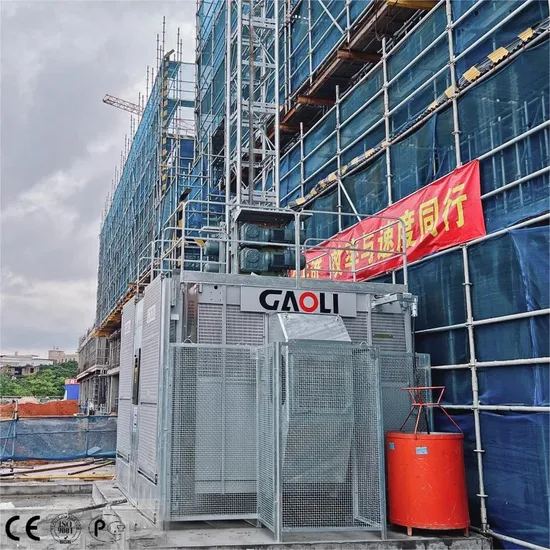

Rack and Pinion Construction Building Equipment/Hoist/Lift
Product Description
Construction hoist is also called building construction elevator, outdoor elevator, building lifts. It is widely used as construction machinery to lift people and building materials.
Construction hoist is mainly used in the internal and external decoration, bridge building, chimney, etc
SC series Construction Hoist/Elevators adopts rack-and-pinion transmission. For so many years, having digested domestic and foreign advanced technology and innovated, it has become newly designed, compact structure, convenient operation, easy installation and disassembly, beautiful shape and reliable performance.
> Mast Section Dimension: 650 * 650 * 1508, 800 * 800 * 1508
> Main Chord: Φ76 * 4.5, Φ76 * 6.0, Q345B
Structure forms varies: SCD two drive, SC three drive without balance, built-in upper-setting and frequency control, etc.
Application: the equipment is applicable to people and material transporting in high building construction that above 60m, such as bridges, chimneys, mansions, etc.. And can also be used in warehouse , wharf, etc for vertical transportation
Color: silver
Dimension of mast section 650*650*1508mm
Mass of mast section 150kg
Mass of external cages 1480kg
Space dimension in cage 3.2*1.5*2.5m
Product Parameters
Parameter
| Unit
| Model
|
SC100
| SC100/100
| SC200
| SC200/200
|
Rated capacity
| kg
| 1000
| 2×1000
| 2000
| 2×2000
|
Number of people
| No.
| 12
| 2×12
| 16
| 2×16
|
Rated lifting speed
| m/min
| 36
| 36
| 36
| 36
|
Max.lifting height
| m
| 200
| 200
| 200
| 200
|
Motor power
| kw
| 2×11
| 2×2×11
| 3×11
| 2×3×11
|
Suspension cage inner size
| m
| 3×1.3×2.2
| 3×1.3×2.2
| 3×1.3×2.2
| 3×1.3×2.2
|
Weight of 650 standard section
| kg
| 124
| 148
| 124
| 148
|
Dimension of 650 standard section
| mm
| 650×650×1508
| 650×650×1508
| 650×650×1508
| 650×650×1508
|
counter weight
| kg
| =
| =
| =
| =
|
Suspender loading capacity
| kg
| 200
| 200
| 200
| 200
|
Dimension of 800 standard section
| mm
| 800×800×1508
| 800×800×1508
| 800×800×1508
| 800×800×1508
|
Salient Features
Mast section welded by welding Robot ensures reliable quality and elegant appearance.All the steel structures are processed with blasting technology to remove rust. The adhesion of surface painting is outstanding.Suspension cage guarding board adopts figured aluminum plate and numerical control punched aluminum plate. The suspension cage is lightweight and artistic in appearance.Transmission mechanism supplied by the professional manufacturer has high efficiency, long service life and stability in performance.Complete set of overload protection devices, variety of limiters and mechanical chain devices ensure its reliability. Anti-falling safety device adopts SAJ40-1.2, which restricts the excessive downward movement of the cage, preventing and eliminating accidents.Frequency conversional construction elevator is safe, stable and comfortable. Starting electricity is smaller than working electricity, energy-saving and high efficient.
Company Profile
Established in August 2003, GAOLI Engineering Machinery Co., Ltd, is headquartered at Tongjing Town of Jiangning District, Nanjing, covering an area of 36,000 square meters, and a construction area of 20,000 square meters.
GAOLI will continue to adhere to the business philosophy of "Customer Supreme, Quality First and Pursuit of Excellence", form an interest community with customers and partners, and bring GAOLI brand, capital, technology and market strength into full play to further improve service quality and capability, providing customers with high quality and technologically advanced products and services. "To achieve your dreams, we will continue our efforts!"
FAQ
1. Q: Are you factory?
A: Yes, we are a factory that located in Nanjing for over 10 years
2. Q:what is the delivery time?
A: It is according to the machine you need.
3. Q: How is the machine packed?
A: Each packed in carton, then put in wooden case, and then in container.
4. Q:Why choose us? A: We own high-quality, reasonable price. If purchase now,
we will supply you one set assembly auxiliary tools and one set wearing parts.
5. Q:Can we visiting your factory? A: We warmly welcome your visiting!
>>
