Clk6140s Slant Bed CNC Lathe Machine

Product Description

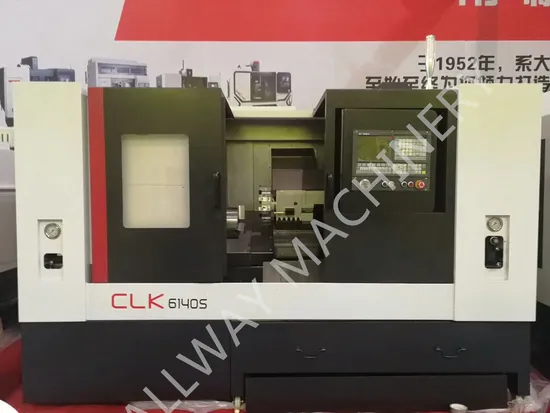

CLK6140S Slant Bed CNC Lathe Machine
1.Product introduction and use
This machine is a fully functional slant bed CNC lathes, especially suitable for small and medium-sized plate, short shaft parts of high speed, high precision machining. There are two straight axis X, Z, can do long stroke integral movement by hydraulic driven tailstock . be able to complete full functions by one clamping for: turning, drilling, boring, tapping, reaming, and others.
2.maintechnical parameters

Items		Unit	CLK6140S Specification
Maxi. swing over bed		mm	Φ540
Max. processing dia.(not over carriage /over carriage)		mm	400/290
Max. distance between Spindle standard configuration chuck end face(doesn't contain claws) to top of tailstock; (Max. support length)		mm	600
Max. Dia. Of through bar inner spindle (when standard configuration )		mm	50
Main motor		kw	7.5
Max.travel	Travel for X	mm	200
	Travel for Z	mm	600
rapid moving	For X	m/min	18
	For Z	m/min	18
Guide way	Lathe bed guide rail tilt Angle	degreee	30
	Guide way type		Ball screw
	Single width of X/Z/W(tailstock)	mm	35/45/45
Ball screw	X	mm	32*8
	Z	mm	40*10
Spindle	Spindle speed range	r/min	30-4000
	Spindle nose		A2-6
	Spindle inner cone		80
	Standard configuration hydraulic chuck	mm	200
tailstock	tailstock inner cone	MT	MT5
	Move type		Hydraulic(integral type )
	travel	mm	450
Cooling	cool pump power	w	370
	Cool pump flux	L/min	75
	Cool pump volume	L	200
Tool turret	Tool turret type		horizontal
	Tool number	pcs	10
	Tool specification	mm	Square 20/round 25
Lubrication type			Auto
Position accuracy		Mm	±0.008
Re-position accuracy		Mm	±0.004
Power form	AC voltage	V	3 380±10%
	Frenquency	HZ	50±10%
Total Power capacity		KVA	15
weight		kg	3500
Overall dimension(L*W*H)		mm	2800*1750*1870

3.Standard configuration
1)8″ 3-jaw hydraulic chuck and soft jaw ;
2)spindle motor: servo motor,7.5KW(48N.M);
3)Max spindle unit speed 4000rpm'
4)10 position hydraulic tool turret(contain turning/boring apron each 2);
5) Manual pulse generator(hand wheel).;
6) Z axis rigid tapping Z;
7) Centralized automatic oil lubrication; ;
8)outlay water coolant and air coolant system;(,,,);
9)chip by manual;
10)All protective sheet metal shield and guide shield;
11)leveling pads;
12) Work light;
13)warning lamp;
14)hydraulic unit;
15)Fanuc 0i MF5 CNC system
4. Optional configuration:
1)GSK, Siemens, Mitsubishi and so on cnc controller.
2)auto chip conveyor;
3)manual chuck;
4)servo tailstock;
5) sub-spindle;
6)Elastic collet and collet
7) tool setting,
8)feeder bar.
5.Slant bed CNC LATHE Packing:
