Auto Ss Pipe Polishing Machine Metal Stainless Steel Belt Sander Pipe Polish Tube Buffing Grinding Polishing Machine for Metal

Product Description

Product Description

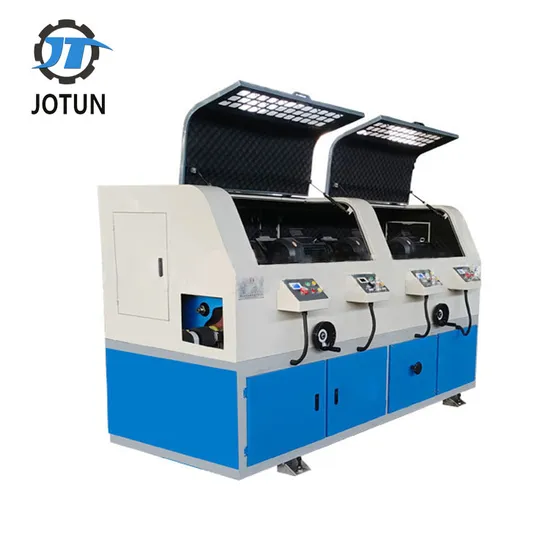

Pipe External Grinding Machine
Thismachinecanbeinstalledwithavarietyofbrowncorundumandwhitecorundumgrinding
wheelsandpolishingwheelssuchasimpellerwheels,hempwheels,nylonwheels,woolwheels,
clothwheels,PVA,etc.Theguidewheelhassteplessspeedcontrol,simpleandconvenient
operation,andoptimizedsteelstructure.Theperformanceismorestable.Thereservedfanport
canbeequippedwithadustremovalfanorawetdustremovalsystem.Itcanbeequippedwithan
automaticloadingandunloadingmechanismaccordingtotheprocessinglengthoftheworkpiece.
Thisequipmentcanbeequippedwithagrindingwheeltohavealargemarginonthesurfaceof
roundsteelandroundpipeswithseriousdefectsgrindinganddescaling.
Product Parameters

Model	JT-WY-2	JT-WY-4	JT-WY-6	JT-WY-8	JT-WY-10
Grinding heads	2	4	6	8	10
Input Power(KW)	8.6	18	26.5	35.5	44
Processing diameter	4-150mm
Processing length	100-6000mm(can be customized)
polishing wheel(mm)	250/300*40/50*32(Width can be assembled)
Specification of guide wheel	100*200mm
Speed of polishing wheel	3000r/mm
Guide wheel speed	Stepless speed regulation
Polishing efficiency	0-20m/min
Surface roughness	R<0.02μm
Wet water cycle dust removal	Optional
Dry fan dust removal	Optional
Grinding head feeding	Digital display electric adjustable
Machine weight(kgs)	800	1600	2400	3200	4000
Machine weight(meters)	1.4*1.2*1.0	2.6*1.2*1.0	3.8*1.2*1.0	5.0*1.2*1.0	6.2*1.2*1.0

Detailed Photos
Product Feactures
Company Profile
China Jotun Polishing Machine supply China professional
automatic grinding machine for Metal tank shell,dished end,flat sheet,round tube,welding seam treatment Equipment,main products are cylinder grinding machine, stainless steel tank shell polishing machine,dish head polishing machine, round tube polishing machine,welding seam grinding machine.
widely used for pharmaceutical industry,food,water purification,water supply,chemical,and new energy.Including elliptical dish,cone dish head,spherical shell ,butterfly shell,pharmaceutical stainless steel tank,pressure vessel,brewery,cylinder,cosmetic,sanitary,reaction kettle,fermentation?tank,sterilizer,disinfection cabinet,filter, and LNG etc.
Everyone in our team will do their best to serve you, solve your problems and achieve mutually beneficial cooperation.
Packaging & Shipping
Oversea Customer Case
Certifications

---
