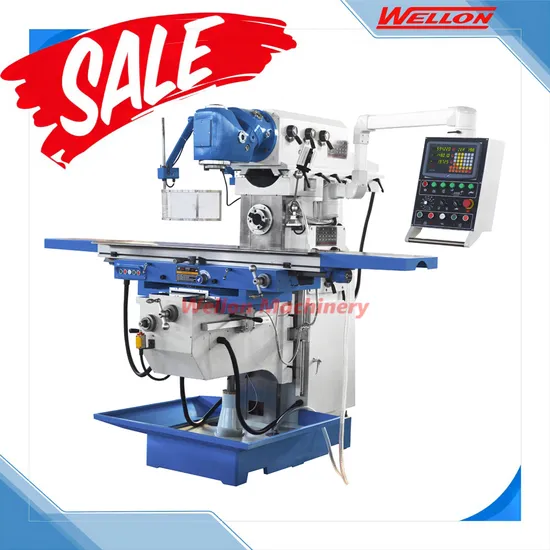

1700X400mm Universal Milling Machine Um1460 with 3 Axis Dro

Product Description

Product Description
Products Description:
Heavy duty universal milling machine UM1460 with table swivel 50 degree Product Parameters
Specifications:
Logical, clearly arranged gearshift for speed change
Hardened and polished guide ways guarantees top accuracy
Setting of the required feed speed by potentiometer on the control panel
Finely graduated feeds in all axis, driven by servo motor
Universal mill head system 'Huron' adjusts to various angles
Complete with rapid feed in x-, y- and z-axis to reduce downtime
Optimal adjustments of spindle speed and feed allow for economic machining of various materials

Specifications	Unit	UM1460
Table size	mm	1700×400
Table travel (X/Y/Z)	mm	1300/450/650
T-slots(NO./width/pitch)	mm	3/18/100
Table feed speed X axis	mm/min	25~800
Table feed speed Y axis	mm/min	25~800
Table feed speed Z axis	mm/min	8~267
Spindle taper		7:24 IS050 (H) 7:24 IS050 (V)
Arm travel	mm	700
Distance from vertical spindle to table	mm	200-850
Distance from horizontal spindle to table	mm	0-500
Distance from spindle to arm	mm	200
Spindle speed range	r.p.m	50-1520 (V) 60-1850 (H)
Spindle speed steps	steps	12
Main motor power	Kw	5.5 (H) 5.5 (V)
AC servo feed motor torque	N.m	12
Overall size	mm	2245×2100×2000
Net weight	kg	3700

Standard accessories :
Mill chuck set
Draw bar
Mill arbors
Worktable swivel ±50 degree
Reduction sleeve
Coolant device
Coolant tray
Automatic central lubrication
Foundation bolts
Tools
Optional accessories :
Machine vice 160mm
Machine vice 200mm
3-Axis Digital readout
Universal Dividing Head F11-160A
Rotary table TSL300
58 pcs Clamping kits
Spindle protection
Worktable protection
Slotting head
