Toplift OEM Factory Hand Chain Single Lifting Gear Geared Beam Trolley 30t

Product Description

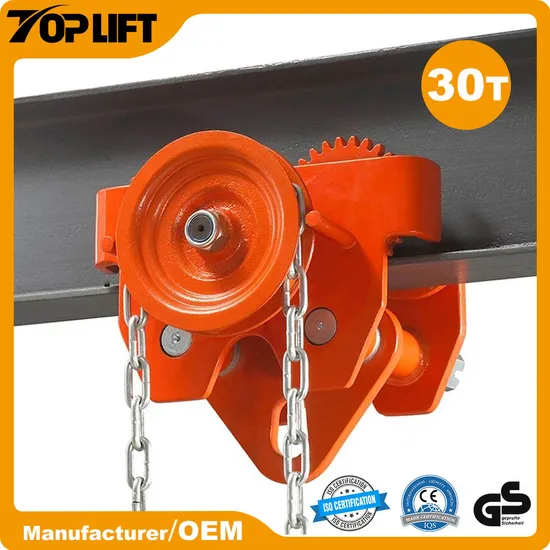

30T Manual Lifting Geared Trolley For Chain Block
1.Double shafts design
2.Reasonable load and run stably
3.Suitable for various profiles,both for flat and bevel flanges
4.Continuously adjustable lower flange geared trolley for 3M beam height

Model	Rated Load(Ton)	Test Load(Ton)	I-Beam recommended(mm)	I-Beam recommended(mm)	A		B	C	D	E	F	G	H	J	K	L	M	Weight(kg)
					a	b												a	b
MG-0.5T	0.5	0.75	50-152	50-203	108	322	200	190	108	53	94	18.5	78	57	37	14	24	10.0	10.5
MG-1.0T	1.0	1.5	64-203	64-305	115	436	238	211	115	59	120	24	90	66	40	16	28	14.5	16.0
MG-2.0T	2.0	3.0	88-203	88-305	130	445	274	236	130	69	136	26	105	75	44	17	34	22.0	24.0
MG-3.0T	3.0	4.5	100-203	100-305	164	459	314	295	164	82	150	33	130	96	60	17	34	30.0	38.0
...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...
MG-10T	10.0	15.0	124-203	124-305	378	525	480	460	237	130	198	55	189	150	90	27	57	88.0	94.0
MG-20T	20.0	30.0	136-203	136-305	240	600	565	495	240	148	268	55	255	175	110	56	80	165	215
MG-30T	30.0	45.0	-	175-305	-	673	625	564	258	164	296	60	255	196	125	76	90	-	230
MG-50T	50.0	75.0	-	175-305	-	673	625×2	564	258	164	296	60	255	196	125	76	90	-	610

parts
Packing
Our Products
FAQ
1. Do you provide OEM service?
Yes, of course. We have professional designers to help your design the brand.
2. How to get samples to check your quality?
After price confirmation, you can require for samples to check our quality. Free for the samples, but you need to pay for the freight.
3. What's your quality guarantee?
We have different kinds of products which can meet different quality standard.
Our QC department will teset products before shipping. We have 100% quality guarantee to customers. We will be responsible for any quality problem.
4. what's the delivery time?
The delivery time is depend on the products and the quantity. But generally, the delivery time for a container is about one month.

---
