Basic Info.
Engraving Head Speed Adjustability
Non-Adjustable
Application
Stone Industry
Name
Marble Carving CNC Routet
Structure
Thick Steel Wall Structure
Working Area
1300X2500X1500mm
Driving System
Servo Motor and Driver
Control System
Syntec; Osai; Weihong
Lubrication System
Automatic
Transport Package
Wood Case with Steel Frame
Production Capacity
200set/Month
Product Description

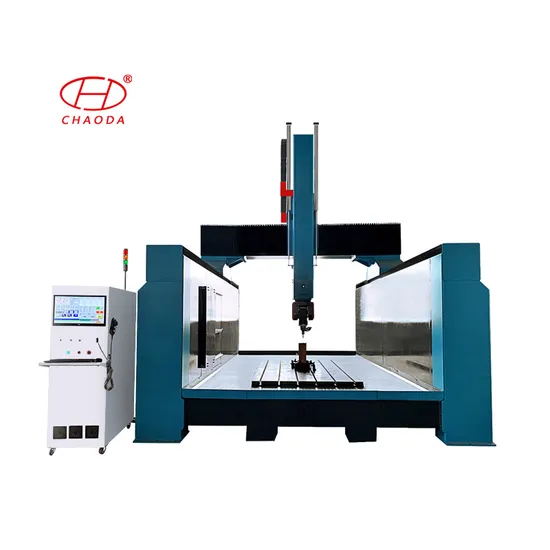

marble granite stone engraving carving cnc routet with heavy duty steel wall structure
All machine parts adopt high configuration and top quality from all over the world, to make machine with high performance and durability. Heavy duty steel wall structure, keep machine with very good stability. Adopt disk/linear type automatic tool changer with 8 tools magazine, spindle change tools automatically,no need manual work. High z axis design, suitable for large scale three dimensional surfaces machining.
| Model No. | JC1325-5AXIS |
| X,Y,Z,A,C working size | 1300*2500*1500mm* ±120°* ±245° |
| Whole structure | heavy duty steel wall structure |
| Table surface | T-slot with clamps (option: vacuum table) |
| Spindle | 10KW ATC spindle, cooled by liquid |
| Tool magazine | Disk type automatic tool changer, with 8pcs tool magazine |
| Driving system | Japan YASKAWA servo motor and driver |
| Inverter | Delta |
| Operating system | 5 axis Syntec (option:OSAI) |
| Operation language | G code |
| Working voltage | AC380V, 3-phase, 50Hz |
| Running environment | Temperature: 0ºC-45ºC; Relative humidity:30%-75% |
It can process many materials,like stone eps foam,woods, MDF, Composite boards, Alucobond,PVC, Rigid plastics,polyester,
fiberglass, Acrylic,Organic glass, Aluminum,etc.
1. Sample testing before shipment 2. Provide 2 days free training for each machine 3. 12 months warranty for each machine 4. Friendly English version manual and operation videos for studying 5. Free technical support by phone,email,chatting or remote 6. Engineers available to service machinery overseas
>>
