Product Details
Product Description
Product Description
Description

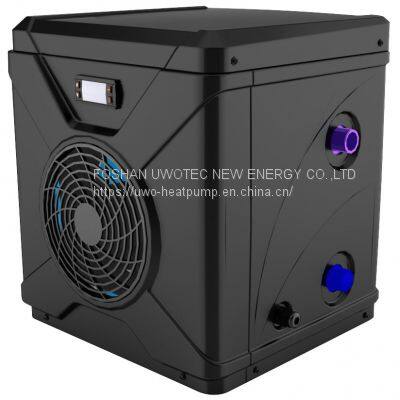

Mini Pool Heat Pump, side discharge, injection molded ABS plastic cabinet, R32 gas, CE standard.
1. Injection molded anti-fire ABS plastic casing: Innovated, unique and graceful design, provides a more personzlied and fashionable solution for above ground pools, jacuzzis or spas.
2. Renewed internal strucure design: Vertical water inlet / outlet, added compressor discharge temperature sensor and protectuon, L-shaped evaperator ect., ensure much higher energy efficiency.
3.Revolutionary inner-grooved OBLATE TUBE titanium heat exchanger: this is a completely new creation that has never been used in pool heat pumps, like we introduced spiral tube 2years before. Heat exchanging efficiency is initially 30% higher than spiral tubes.
Specification
| Model No. |
| UHP026HSPmn | UHP035HSPmn | UHP045HSPmn | UHP055HSPmn |
|
| Heating capacity | kW | 2.56 | 3.45 | 4.45 | 5.46 |
| Power consumption | kW | 0.62 | 0.77 | 1.09 | 1.30 |
| C.O.P | W/W | 4.1 | 4.5 | 4.1 | 4.2 |
|
| Heating capacity | kW | 1.96 | 2.49 | 3.40 | 4.17 |
| Power consumption | kW | 0.58 | 0.71 | 1.06 | 1.26 |
| C.O.P | W/W | 3.4 | 3.5 | 3.2 | 3.3 |
|
| Compressor |
| Rotary type with R32 refrigerant,GMCC or the similar brand. |
| Voltage |
| 220-240V/50Hz/1PH |
| Rated current | A | 3.1 | 3.2 | 5.1 | 5.6 |
| Advised pool volume(covered) | m³ | ≤15 | 12-25 | 15-28 | 18-32 |
| Water side heat exchanger |
| Spiral round titanium tube in PVC shell |
| Water connection | mm | 32 or 38 |
| Noise level(10m) | dB(A) | 40 | 43 | 45 | 45 |
| Net weight | kg | 20 | 21 | 26 | 28 |
| Gross weight | kg | 23 | 24 | 29 | 31 |
| Net Dimension(WxDxH) | mm | 416*387*433 |
| Packing Dimension(WxDxH) | mm | 480*420*480 |
>>
