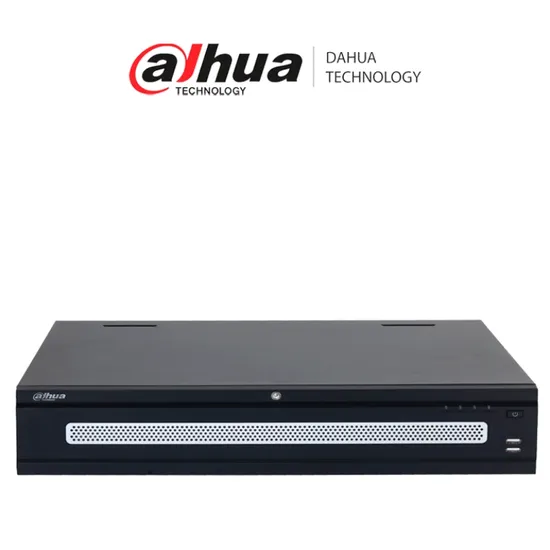

Dahua Hikvision Original 64channel CCTV Wizsense NVR Digital Video Network Recorder DVR
> Supports Smart H.265+, H.265, Smart H.264+, H.264 and MJPEG decoding formats.
> Max. decoding capability: 32 × 1080p@30 fps.
> Max. 1280/1280/1024 Mbps incoming/recording/outgoing bandwidth.
> Supports AcuPick with up to 64 channels.
> AI by Recorder supports 8-channel face detection and recognition, up to 40 face databases and 300,000 face images; 8-channel metadata; 32-channel perimeter protection; 32-channel SMD Plus.
> AI by Camera supports face detection and recognition, perimeter protection, SMD Plus, metadata, ANPR, stereo analysis, heat map, and people counting.
> Supports redundant power, N+M cluster, Raid 0/1/5/6/10, ISCSI, Drawer-like chassis design allows for HDD hot swapping.
> Supports EPTZ, One-click Arming & Disarming.
> Security baseline 2.3.
System
|
Main Processor
| Industrial-grade processor
|
Operating System
| Embedded Linux
|
Operating Interface
| Web, Local GUI
|
AI
|
AI by Recorder
| Face detection; face recognition; video metadata (human, motor vehicles, and non-motor vehicles); SMD Plus
|
AI by Camera
| Face detection; face recognition; video metadata (human, motor vehicles, and non-motor vehicles); SMD Plus; stereo analysis; crowd distribution; people counting; ANPR; vehicle density; object monitoring
|
AcuPick AI by Camera + Recorder
| Max. 64-channel, 1 combined event per channel/s
|
Perimeter Protection
|
Perimeter Performance AI by Recorder (Number of Channels)
| Simultaneous mode: 32 channels, 10 IVS rules for each channel Heterogeneous mode: 24 channels, 10 IVS rules for each channel
|
Perimeter Performance of AI by Camera (Number of Channels)
| 64 channels
|
Face Detection
|
Face Attributes
| Gender; age group; glasses; expressions; face mask; beard
|
Face Detection Performance of AI by Recorder (Number of Channels)
| Simultaneous mode: 8 channels (up to 12 face images/s each channel) Heterogeneous mode: 5 channels (up to 12 face images/s each channel)
|
Face Detection Performance of AI by Camera (Number of Channels)
| 64 channels
|
Face Recognition
|
Face Database Capacity
| Up to 40 face databases with 300,000 images, with a total capacity of 48 G. Name, gender, birthday, address, credential type, credential No., countries & regions and state can be added to each face image.
|
Face Recognition Performance of AI by Recorder (Number of Channels)
| Simultaneous mode: 32-channel FD (by camera) + FR (by recorder),image stream: 32 face images/s; 8-channel FD (by recorder) + FR (by recorder), video stream: 16 face images/s Heterogeneous mode: 16-channel FD (by camera) + FR (by recorder),image stream: 16 face images/s; 5-channel FD (by recorder) + FR (by recorder), video stream: 10 face images/s
|
Face Recognition Performance of AI by Camera (Number of Channels)
| 64 channels
|
SMD Plus
|
SMD Plus by Recorder
| 32-channel: Secondary filtering for human and motor vehicle , reducing false alarms caused by leaves, rain and lighting condition change
|
SMD Plus by Camera
| 64 channels
|
Video Metadata
|
Metadata Performance of AI by Recorder (Number of Channels)
| 8 channels
|
Metadata Performance of AI by Camera (Number of Channels)
| 64 channels
|
People Attributes
| 9 human body attributes
|
Human Attributes
| Top color, top type, hat, bag, age, gender and umbrella
|
Motor Vehicle Attributes
| License plate, plate color, vehicle model, vehicle logo, plate color, ornament, calling,
|
Non-motor Vehicle Attributes
| Vehicle model, vehicle color, number of persons, helmet.
|
Vehicle License Plate Comparison
|
ANPR by Camera (Number of Channels)
| 64 channels
|
License Plate Database Capacity
| Blocklist and allowlist: 20,000
|
Audio and Video
|
Access Channel
| 64 channels
|
Network Bandwidth
| AI disabled: 1280 Mbps incoming, 1280 Mbps recording and 1024 Mbps outgoing AI enabled: 640 Mbps incoming, 640 Mbps recording and 512 Mbps outgoing
|
Resolution
| 32 MP; 24 MP; 16 MP; 12 MP; 8 MP; 5 MP; 4 MP; 1080p; 720p; D1
|
Decoding Capability
| AI disabled: 2-channel 32 MP@30 fps; 2-channel 24 MP@30 fps; 4-channel 16 MP@30 fps; 5-channel 12 MP@30 fps; 8-channel 8 MP@30 fps; 12-channel 5 MP@30 fps; 16-channel 4 MP@30 fps; 32-channel 1080p@30 fps;64-channel D1@30 fps AI enabled: 1-channel 32 MP@30 fps; 1-channel 24 MP@30 fps; 2-channel 16 MP@30 fps; 2-channel 12 MP@30 fps; 4-channel 8 MP@30 fps; 6-channel 5 MP@30 fps; 8-channel 4 MP@30 fps; 16-channel 1080p@30 fps; 64-channel D1@30 fps
|
Video Output
| 2 VGA, 4 HDMI; VGA: 1920 × 1080, 1280 × 1024, 1280 × 720; HDMI1&2: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720; HDMI3: 7680 × 4320, 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720; HDMI4: 1920 × 1080, 1280 × 1024, 1280 × 720 Simultaneous mode: max. resolution of VGA1 and VGA2 is 1080p; max. resolution of HDMI1 and HDMI2 is 4K; max. resolution of HDMI3 is 8K; max. resolution of HDMI4 is 1080p Heterogeneous mode: Simultaneous video source output for VGA1 and HDMI1, simultaneous video source output for VGA2 and HDMI2. Max. resolution of VGA1 and VGA2 is 1080p; max. resolution of HDMI1, HDMI2 and HDMI3 is 4K; max. resolution of HDMI4 is 1080p
|
Multi-screen Display
| Main screen: 1/4/8/9/16/25/36/64 Sub screen: 1/4/8/9/16/25/36
|
Third-party Camera Access
| ONVIF; RTSP; Sony; Axis; Arecont; Pelco; Canon; Samsung
|
Compression Standard
|
Video Compression
| Smart H.265+; H.265; Smart H.264+; H.264; MPEG4; MJPEG
|
Audio Compression
| G.711a; G.711u; PCM; G726
|
Network
|
Network Protocol
| HTTP; HTTPS; TCP/IP; IPv4; RTSP; UDP; NTP; DHCP; DNS; SMTP; UPnP; DDNS; Alarm Server; IP Search (Supports Dahua IP camera, DVR, NVS, etc.); Multicast; P2P; Auto Registration; ISCSI
|
Mobile Phone Access
| iOS; Android
|
Interoperability
| ONVIF (Profile S/profile T/Profile G); CGI; SDK
|
Browser
| Chrome IE 9 or later Firefox
|
Network Mode
| Multi-address mode, load balance, fault tolerance and other network port binding modes
|
Recording Playback
|
Multi-channel Playback
| Up to 16 channels
|
Record Mode
| Manual; alarm; motion detection; scheduled
|
Backup Method
| Portable hard drive, eSATA disk, burner, USB device and network
|
Playback Mode
| 1. Play, pause, stop, fast forward, fast backward, rewind, play by frame 2. Full screen, backup (cut/file), partially enlarge, audio on/off
|
Storage
|
Disk Group
| Yes
|
RAID
| RAID 0/1/5/6/10
|
Hot Swapping
| Yes
|
Alarm
|
General Alarm
| Motion detection; video tampering; video loss; scene changing, PIR alarm, IPC external alarm
|
Anomaly Alarm
| Camera offline; storage error; disk full; IP conflict; MAC conflict; login lock; abnormal behavior of fan
|
Intelligent Alarm
| Face detection; face recognition; perimeter protection (intrusion and tripwire); SMD Plus alarms; ANPR; people counting; stereo analysis; crowd distribution; heat map
|
Alarm Linkage
| Record; snapshot; IPC external alarm output; buzzer; log, preset; email
|
Port
|
Audio Input
| 1-channel RCA
|
Audio Output
| 2-channel RCA
|
Alarm Input
| 16 channels
|
Alarm Output
| 8 channels
|
HDD Interface
| 8 SATA ports, up to 16 TB. The maximum HDD capacity varies with environment temperature.
|
eSATA
| 1
|
RS-232
| 1
|
RS-485
| 1 × A/B
|
USB
| 4 (2 front USB 2.0 ports, 2 rear USB 3.0 ports)
|
HDMI
| 4
|
VGA
| 2
|
Network Port
| 2 (10/100/1000/2500 Mbps Ethernet port, RJ-45)
|
General
|
Power Supply
| 100-240 VAC, 50/60 Hz
|
Redundant Power
| Yes
|
Power Consumption
| <18 W (without HDD)
|
Net Weight
| 8.14 kg (17.95 lb) (without HDD)
|
Gross Weight
| 12.24 kg (26.98 lb) (without HDD)
|
Product Dimensions
| 444.0 mm × 476.0 mm x 95.0 mm (17.48" × 18.74" × 3.74") (W × D × H)
|
Packaging Dimensions
| 571.0 mm × 618.0 mm × 219.0 mm (22.48" × 24.33" ×8.62")(W × D × H)
|
Operating Temperature
| -10 °C to +55 °C (14 °F to +131 °F)
|
Storage Temperature
| 0 °C to +40 °C (+32 °F to +104 °F)
|
Operating Humidity
| 10%-93% (RH), non-condensing
|
Installation
| Rack or desktop
|
Certifications
| FCC: 47 CFR FCC Part15, SubpartB, Class A CE-EMC: EN 55032:2020, Class A; EN IEC 61000-3-2:2019; EN 61000-3-3:2013+A1:2019; EN 55024:2010+A1:2015; EN 55035:2020; EN 50130-4:2011+A1:2014 CE-LVD: EN 62368-1:2014+A11:2017
|
