Product Description
Product Description

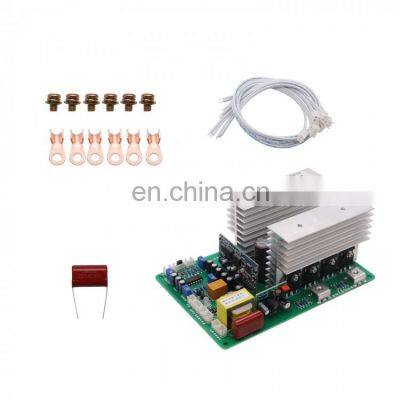

48V 3600W Pure Sine Wave Power Frequency Inverter Driver Motherboard Product Description Power frequency sine wave inverter motherboard function description:1. Battery low voltage protection:When the battery voltage is lower than 10.5V per section, the inverter will turn off the inverter (there is no AC voltage output at this time), and the inverter is in standby mode.2. Battery overvoltage protection:When the battery voltage is higher than 14.8V per section, the inverter also turns off the inverter and enters standby mode.3. The battery starts normally:When the battery is under low voltage protection, when the solar or wind energy charges the battery to 12.5V per section, the inverter automatically starts to output the AC voltage to supply power to the load. Battery overvoltage protection: When the overvoltage protection is restored to below 14.8V, the inverter will also start automatically.4. Temperature controlled fan and over temperature protection:When the inverter is working normally, the fan does not turn. When the temperature is too high, the fan runs automatically. When the temperature drops, the fan stops automatically. When the fan is damaged and the temperature is too high, the inverter will turn off the inverter and enter standby mode.When the temperature drops, the inverter is automatically started and the AC power is output.5. Shock and short circuit protection:The inverter has real-time hardware-by-wave current-limit protection, and software delay (400mS) short-circuit protection plus power frequency isolation transformer, which improves the product's impact resistance and reliability. Recommended matching transformer power:6V power supply 6-7V transformer 220V transformer 1000w24V power supply 12-14V transformer 220V transformer power 2000w36V power supply 18-21V transformer 20V transformer power 2600w48V power supply 24-27V transformer 220V transformer power 3000W Jumper Name Label Setting Description:FROSELO- JP5 selects 50H output when P5 is shorted- When [2] is shorted, the 3-second soft start function is enabled.- Turn off the soft start function when P6 is shorted- JP3 when 7 and JP8 are short-circuited at the same time: dead time is 300ns- JP7 when P3 and JP8 are short-circuited at the same time: dead time is 5005- JP4 When JP4 and P7 are short-circuited at the same time: dead time is 1.0us- DT1- JP8 when P3 and P4 are short-circuited at the same time: dead time is 1.5us- The default setting of the driver board jumper is JP5, P2, A P7, JP8 short circuit, the corresponding function is 50Hz, 35 soft start, dead time 300ns, users can change according to their needs- Note: The same function jumper cannot be shorted at the same time! 1 If P1 cannot be shorted simultaneously with JPs. Installation precautions: Battery to motherboard should be connected in series with a high quality 100A air switch. LED warning indication- Normal: long bright- Over current: 2 flashes, 2 seconds off, always cycling- Over voltage: 3 flashes, 2 seconds off, always cycling- Under voltage: 4 flashes, 2 seconds off, always cycling- Over temperature: 5 flashes, 2 seconds off, always cyclingNote:- It is designed with 2.2uF capacitors.- This board is an industrial frequency inverter board needs to cooperate with the power frequency transformer- This product is a special commodity and needs to understand related technologies. If you do not understand electronic technology, please don't buy!!!Package Included:- 1 x Inverter MotherboardNote: Buyer must have the knowledge of power frequency inverter and electronic technology. Or it will be very hard for buyer to connect the product! Detail photoFAQ Q1. Can I have a sample order?A: Yes, we welcome sample order to test and check quality. Q2. What about the lead time?A: Samples arrived often need 3-5 days. Q3. Do you have any MOQ (minimum order quality)limit?A: Low MOQ, 1pc for sample checking is available. Q4. How do you ship the goods and how long does it take to arrive?A: We often ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping is also optional. Q5. How to proceed an order?A: Initially, let us know your requirements or application. Besides, We quote according to your requirements or our suggestions. Thirdly, customers confirms the samples and places deposit for formal order. Finally, We arrange the production. Q6. Is it acceptable to print my logo on the product?A: Yes. Please inform us formally before our product and confirm the design firstly based on our sample. Q7: Do you offer guarantee for the products?A: Yes, we offer one-year warranty for our products. Q8: How to deal with the flaw?A: Our products are produced in strict quality control system and the percent of pass is often maintained over 99.8% Packing&ShippingPackage: Normally we use the standard exporting packaging. We also can according to clients' request . Shipping : 1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier we are co-operating at present.2. By Air: Delivery from the Shanghai airport to customers’ destination city air port.3. By Sea: Delivery from the Shanghai sea port . Company informationTZT has been speciliazing in Business & Industry,Hobbies & Toys,CNC Products and Health care supplies for over 5 years.We committed to enhance customer satisfaction by continually improving the process with a vision of expertise in the field. Aiming to provide high quanlity products and great service for buyer,we are strict on product quanlity control and offer instant communication service.Welcome to contact us!Our Advantages:- Source only the best consumer goods and ensure the highest quality.- Streamline the buying and payment process, and make it as easy as possible.- Help the customers all over the world discover products and manufacturers in China.- The Shortest order processed time and speed delivery
>>
