Product Details
Product Description
Product Description

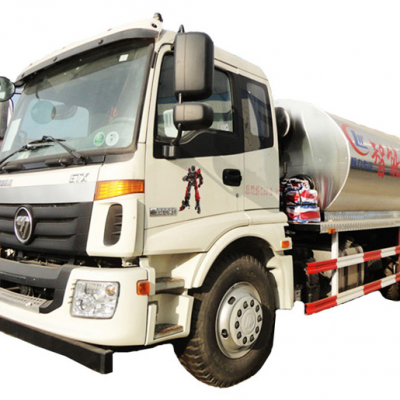

Our company is appointed by the Ministry of Industry and Information of China which is a manufacturer for producing all kinds of special trucks, and the asphalt distributor truck is one of our trucks. It is also called bitumen spray truck which can distribute liquid asphalt, emulsified asphalt, hot asphalt, rubber asphalt, etc. Adopts Imported advanced equipment, the quality is reliable and stable. There is different configuration to meet customers’ requirement.
There is liquid asphalt, emulsified asphalt, hot asphalt, rubber asphalt, etc medium.
The Advantage of 10m3 FOTON Asphalt Distributor truck1. Three kinds of configurations can be chosen from;
2. With PLC automatic control system, the truck is of high efficient operation;
3. It is widely used on the high way construction and road protection construction;
4. It can be used for different covering, anti-layer, asphalt surface handling, and it also can be used for transporting for liquid asphalt or other heavy oil.
Specification of 10m3 FOTON Asphalt Distributor truck
Item
| unit
| parameter
|
Vehicle model
|
| SINO Bitumen Distributor
|
Chassis model
|
| ZZ1250
|
Overall dimensions
| mm
| 9995×2490×3200
|
| Fact capacity
| L
| 18000
|
Mass in working order
| kg
| Appro×18100(ref)
|
Body internal dimensions
| mm
| TBD
|
Wheel base
| 4500+1350
|
Engine
| Displacement/power
| 9726/196KW
|
Model
| weichai 266HP
|
Torque
| 520N.m
|
Max speed
| km/h
| 90
|
Tire specification
| 12.00-20
| Drive seat
| LHD
|
Electric system
| 24v
| transmission
| ,9 speed,9 Forward ,1 reserve, 600000 kilometers without pitting, broken teeth
|
Cabin
| air conditioning / radio / cassette / oil brake / cab can flip / power steering
|
Frame
| Collision energy absorbing frame + double no exposed rivets + double hydraulic shock absorber
|
Color
| Identify by customer
|
Equipment
|
bitumen pump
| QGB950
|
Motor
| 05-110-bd31
|
Hydraulic pump
| CBA550-L
|
Spray Width
| 4.5-6M
|
Asphalt nozzle No
| 48
|
Heating mode
| Heat conducting oil, heat automatic
|
burner
| G20 from Italy
|
Heat conducting oil pump
| 40-25-160 made in China
|
Production cycle
| 35days
|
Warranty
| 12 months, from the date of supply
|
>>
