Product Details
Product Description
Product Description

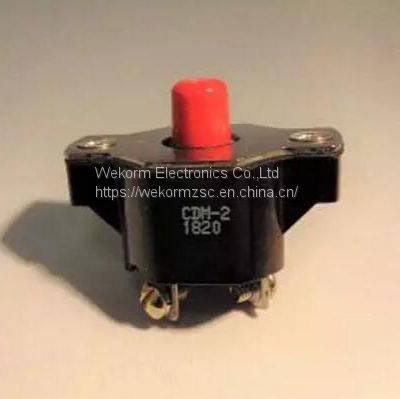

Lixon C series thermal circuit breakers are mainly used to protect wiring. Able to meet the most demanding environmental requirements. C series closed circuit breaker has weatherproof seal, moistureproof, dustproof, grease proof, steam proof and suitable for other harsh environment. C Series circuit breakers are compact, lightweight and designed to interrupt short circuits or overloads, combined with free trip protection for fast response time. Typical applications are the protection of auxiliary circuits, equipment and wire and cable protection in buildings and off-road equipment, Marine, recreational vehicles, mining, agricultural equipment and electric (hybrid) vehicles.
FEATURES
30VDC or 120VAC, 2 to 40 Amps
Open and closed construction
Automatic and manual reset options
Ignition protected SAE J1171
? Weatherproof SAE J553
? UL Recognized E36869
DESCRIPTION
The KLIXON C series thermal breakers are designed to protect wiringand meet the harshest environmental requirements. The C series closed construction circuit breakers are weatherproof sealed for protection against moisture, dust, grease, fuel vapors and other harsh environments. The C series breakers are compact, lightweight and designed to interrupt short circuits or overloads, and combine trip-free protection with fast response time. Typical applications are protection
of wire cable of accessory circuits, equipment and battery protection
in construction and off-road equipment, marine, recreational vehicles
(RV's), mining, agricultural Equipment and Electric (hybrid) vehicles.
ORDERING INFORMATION:
X1 ? X2 ? X3
X1 Configuration
CA = Auto, open unit
CM = Manual, open unit
CDA = Auto, sealed unit
CDM = Manual, sealed unit
X2 Amp Rating
(2, 3, 4, 5, 6, 8, 10, 12.5, 15
17.5, 20, 25, 30, 35, 40)
X3 Mounting Nuts
= leave blank for none
I = optional mounting nuts
KLIXON Thermal Circuit breaker C Series
CA-2
CA-3
CA-4
CA-5
CA-6
CA-8
CA-10
CA - 12.5 -
CA-15
CA - 17.5 -
CA-20
CA-25
CA-30
CA-35
CA-40
CM-2
CM-3
CM-4
CM-5
CM-6
CM-8
CM-10
CM - 12.5 -
CM-15
CM - 17.5 -
CM-20
CM-25
CM-30
CM-35
CM-40
CDA-2
CDA-3
CDA-4
CDA-5
CDA-6
CDA-8
CDA-10
CDA - 12.5 -
CDA-15
CDA - 17.5 -
CDA-20
CDA-25
CDA-30
CDA-35
CDA-40
CDM-2
CDM-3
CDM-4
CDM-5
CDM-6
CDM-8
CDM-10
CDM - 12.5 -
CDM-15
CDM - 17.5 -
CDM-20
CDM-25
CDM-30
CDM-35
CDM-40
PDA-2
PDA-3
PDA-4
PDA-5
PDA-6
PDA-8
PDA-10
PDA-12.5
PDA-15
PDA-17.5
PDA-20
PDA-25
PDA-30
PDA-35
PDA-40
PDM-2
PDM-3
PDM-4
PDM-5
PDM-6
PDM-8
PDM-10
PDM-12.5
PDM-15
PDM-17.5
PDM-20
PDM-25
PDM-30
PDM-35
PDM-40
>>
