Versatile Size 0 00 1 Capsule Filling Equipment for Pharmacies

Product Description

d Product Description Semi Automatic Capsule Filling Machine
The SINOPED accumulated production experiences in manufacturing several thousand sets of JTJ-V Capsule Filling machine, we developed the latest JTJ-VI Pro can operate more efficiently and smoothly.Numerous innovative operational and safety features that streamline the production process and provide processing high speeds. The capsule filler can handle all capsule sizes from 000 to 5. A special design allows for changing mold for different size capsules within 15 minutes easily, simply, and precisely. Can fill material in powder, pellet, or granule forms. Tested by SINOPED laboratory, failure-free in 10,000 hours of operation. JTJ series capsule filling machine is special machine which is suitable for medium and small pharmaceutical factory, hospital preparation lab, etc. The machine is adopted programmable control system, touch panel operation, step-less transudation speed-shift, and electronic automatic counter. It can automatic complete the action of position, separation, filling, locking, etc. The dosage is accurate, and the operation is convenient. The overall machine is made of stainless steel, and it is suitable for the capsule which is filled with power and grain.
10000-25000 Capsule per Hour - This machine is semi automatic to reduce labour costs and increase profitability.
#000 - #5 and Supro/safety capsule sizes AE - The is flexible in what size capsules it can produce. If you need to be able to produce a variation of capsule sizes, we sell additional tooling.
Please notice: there are two kind of machine, suit different size capsule. Please let us know, whether you need 000$ or 00El capsule, when you order:
The difference capacity per time for mold of semi automatic capsule filling machine

	000#	00#	0#	1#	2#	3#	4#
60 type	-	300	360	420	420	420	420
47 type	188	235	282	329	329	329	329

Lifetime support and training - Get in touch in any time. It's free and will be forever for our customers, online support and on line training. You can also contact us anytime and speak to an encapsulating expert.
This machine come with a set of plates and tooling of your choice.

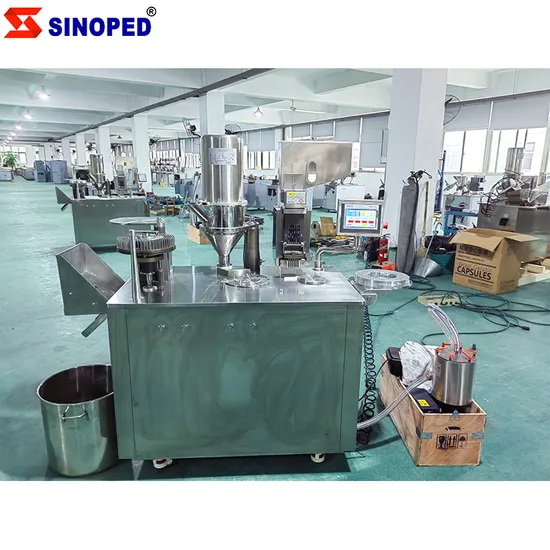

product photo Application: The product is special capsule filling machine which is suitable for mediun and small pharmaceutical factory, hospital preparation lab, etc. The machine is adopted programmable control system, touch panel operation, step-less transudation speed-shift, and electronic automatic counter. It can automatic complete the action of position, separation, filling, locking, etc. The dosage is accurate, and the operation is convenient. The overall machine is made of stainless steel, and it is suitable for the capsule which is filled with power and grain.

Features: Features: High quality hard gelatin semi auto capsule filling machine is controlled by step-less frequency conversion and pneumatic device, and adopts electronic counter. High quality hard gelatin semi auto capsule filling machine can finish position, separation, filling, locking of capsule, and reduce the labor intensity and improve working efficiency.
Four push button to avoid Danger
No air tubes and cylinders on the machine, more clean and safe.
Overall size:

Someone's capsule comb:	Our capsule comb:
Copper welding forming, rough, do not meet the requirements of GMP. Without positioning device, need artificial adjustment after installation.	304 stainless steel welding forming, meet the requirements of GMP. Have a positioning device, easy to repeated disassembly and installation, no adjustment.

Someone's Capsule plate:	Our Capsule plate:
Copper welding forming, rough, do not meet the requirements of GMP. Can not remove to clean it. Without positioning device, need artificial adjustment after installation.	304 stainless steel welding forming, meet the requirements of GMP. Can thoroughly remove, clean, no residue. Have a positioning device, easy to repeated disassembly and installation, no adjustment.

Someone 's capsule falling device:	Our capsule falling device:
1. Don't change head when horizontal push. Not vertically, it always caused deviation in the downward movement. Hard to fall into the upper and lower die, reduce capsule on probability.	1. Head of Capsule falling down and single row vertically. Vertical deviation in the downward movement. Accurately into the upper and lower die, improve capsule on probability.

Someone's Capsule feeding fork:	Our Capsule feeding fork:
Cast aluminum processing molding, do not meet the requirements of GMP. Only push capsules.	304 stainless steel processing molding, meet the requirements of GMP. Push capsules, capsule head movement at the same time.

Technical parameters:

Productivity	10000-25,000
Applicable capsules	00#, 0#, 1#, 2#, 3#, 4#
Filled medicine type	Not adhesive or wet powders and small granules
Total power	4Kw
Air pressure	0.03m3/min, 0.7MPa
Vacuum pump	evacuating rate: 40m3/h
External dimensions	1.14*0.7*1.63 m (L*W*H)
Weight	380Kg

---
