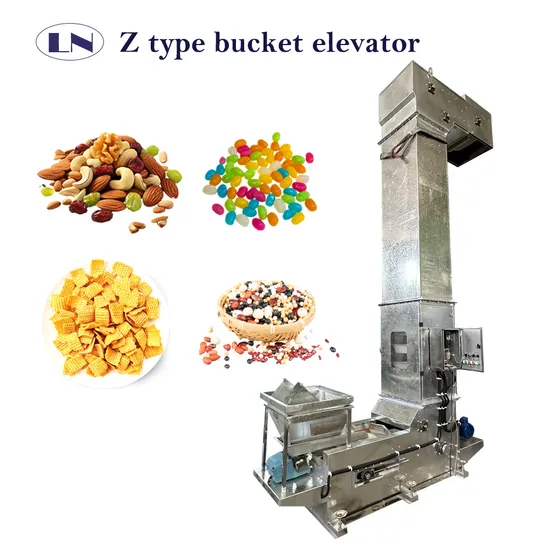

Z-Type Stainless Steel Continuous Vertical Bucket Lift Elevator Conveyor for Food/Industrial/Chemical/Powder/Fertilizer/Material Transfering

Product Description

Product Description
The Z-type bucket elevator completes the horizontal to vertical and then to horizontal conveying process through a combination of conveyors, and is suitable for continuous vertical lifting of powdery, granular, and small materials. It can be designed for single or multiple point feeding and unloading, so it has a wide range of applications in various industrial settings.
The elevator adopts inflow feeding, the material flows into the hopper, and the bucket is lifted upward by the chain, which is transported by the horizontal → vertical → horizontal combination. It can be single point or multi-point feeding and unloading can also be single point or multi-point; The frame is in a "Z" shape, the hopper is arranged between two parallel chains, and the feed end of the hopper is provided with a bin.
Features: Mechanized production instead of manual has the advantages of non-crushing, closed, stable operation, easy maintenance, long life and so on.
Product Parameters

Model	Maximum output	Bucket volume	Operating speed	Max lifting height	Max horizontal length	Power
LNZD-1L	3m³/h	1L	≤0.3m/s	≤45m	≤100m	0.75-22kw
LNZD-1.8L	6m³/h	1.8L
LNZD-2L	6m³/h	2L
LNZD-3L	8m³/h	3L
LNZD-5L	12m³/h	5L
LNZD-7L	15m³/h	7L
LNZD-10L	22m³/h	10L
LNZD-15L	30m³/h	15L
LNZD-20L	40m³/h	20L

Detailed Photos
The working principle of Z-type bucket elevator can be divided into the following steps:
1. Hopper loading: The material is loaded into the hopper located on the chain from the feeding port. The hopper is usually fixed on a chain, which surrounds the driving wheel and the driven wheel.
2. Drive start: The deceleration motor starts and the chain is driven by the driving wheel to start running. The hopper on the chain moves along a specific track.
3. Material lifting: As the chain moves, the material carried by the hopper rises vertically. The special feature of the Z-type bucket elevator is that it undergoes at least one 90 degree turn during vertical lifting, forming a "Z" shaped lifting path.
4. Flipped unloading: When the hopper reaches the top and turns the bend, it will flip and dump the material into the designated unloading port or receiving equipment.
5. Return cycle: Under the action of gravity, the empty hopper returns to the bottom of the machine along the track on the other side, reloads the material, and starts a new cycle.
The specific workflow is as follows:
-Feeding stage: The material enters through the feeding port and fills the hopper.
-Lifting stage: The motor drives the chain, and the hopper moves upward with the chain, lifting the material to a high place.
-Turning stage: After reaching the top, the hopper changes direction through a turning device, forming a Z-shaped path.
-Unloading stage: The hopper flips and the material is unloaded.
-Return stage: The hopper returns to the bottom empty, preparing for the next loading.
Throughout the entire process, the Z-type bucket elevator ensures the safety and environmental hygiene of materials during transportation through the design of a closed casing and hopper. Meanwhile, due to its unique structure, it can meet complex material transportation requirements within a limited space.
Product principle

The advantages of Z-type bucket elevator mainly include the following aspects:
1. Compact structure and high space utilization: The Z-type bucket elevator is designed to be compact and can achieve efficient material transportation in limited space, making it particularly suitable for situations with limited space.
2. Flexible conveying direction: able to combine horizontal and vertical conveying to adapt to different process layout requirements.
3. Fully enclosed structure, pollution-free: Its enclosed casing design can effectively prevent material leakage during transportation, reduce environmental pollution, and also protect materials from external pollution.
4. Reduce material damage: The hopper design is reasonable, and the material damage rate during transportation is low, especially suitable for conveying fragile materials.
5. Adjustable conveying speed: The conveying speed can be adjusted according to the characteristics of the material and production needs to improve conveying efficiency.
6. Smooth operation and low noise: The equipment runs smoothly with low noise, which is beneficial for improving the working environment.
7. Easy to operate and maintain: The Z-type bucket elevator is easy to operate, maintain and clean, and reduces the cost of use.
8. Wide applicability: Suitable for conveying various materials, such as solid and granular materials in industries such as food, chemical, and pharmaceutical.
9. High degree of automation: It can be combined with automated production lines to achieve automatic cutting and multi-point feeding, improving the level of production automation.
10. High temperature and low temperature resistance performance: Some models of Z-type bucket elevators are made of special materials that can adapt to material transportation in high or low temperature environments.
These advantages make the Z-type bucket elevator a widely used material conveying equipment in industrial production.
FAQ
Q1. Have you tested all the goods before shipping?
A: Yes, each product undergoes testing before delivery.
Q2: How does your after-sales service operate if the product is damaged?
A: During the 12 month warranty period, our general after-sales service will replace damaged parts for customers, but if the damage can be repaired at a minor cost, we will wait for the customer's repair cost invoice and refund this portion of the cost.
(Note: Vulnerable parts are not included.)
Q3: How can you maintain a good long-term relationship with our business?
A: We maintain good quality and competitive prices to ensure that our customers benefit.
We are a factory that can offer you the best price and good quality. Our policy is "to save time and maintain an absolutely honest business attitude, we provide the lowest possible quotation for any customer and can offer discounts based on quantity.

---
