Universal Auto Feeding Horizontal and Vertical Milling Machine with Swivel Worktable

US$5,850.00 1 Piece (MOQ)

Basic Info.

Model NO.
XL6136, XL6132
Type
Worktable Milling Machine
Object
Hardware
Structure
Lifts
Milling Cutter Type
Cylindrical Milling Cutter
Milling Cutter Structure
Indexable Type
Controlling Mode
Artificial
Automatic Grade
Semiautomatic
Precision
Precision
Certification
GS, CE, ISO 9001
Condition
New
Transport Package
W/Case
Specification
1250X360
Trademark
Allway
Origin
China
HS Code
84592900
Production Capacity
1000PCS/Year

Product Description



Product Description
Milling Machine
Horizontal Swivel Table Miling Machine XL6032
1.Rotary table can be ordered at special request
2.Driven by AC Servo Motor
3.Table automatic feed on X,Y,Z
4.Automatic rapid feed X,Y,Z
Specification of swivel table milling machine
SPECIFICATIONS:
SPECIFICATION UNIT XL6132 XL6132C XL6132CL
Spindle taper - 7:24 ISO50
Distance between spindle nose and table mm 20-480 20-470
Distance from spindle axis to arm mm 175
Spindle speed range - 12steps 60~1800r.p.m
Table size mm 1325X320 1600X320
Table travel(X/Y/Z) mm 750/320/460 1100/320/450 1300/320/450
Table feed(X/Y/Z) mm/min 30-750 / 20-500 / 15-375
Table rapid speed (X/Y/Z) mm/min 1200/800/600
T-slots(NO:/width/pitch) mm 3/18/70
Arm travel mm 500
Main motor power kw 5.5
Torque of X/Y/Z axis AC servo motor N.m 10
Overall size mm 1800X2100X1870 2245X2100X1870 2520X2100X1870
Net weight kg 2000 2065 2110

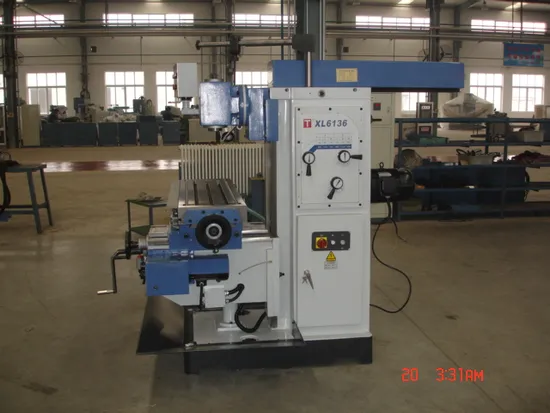

L6136 rotating worktable milling machine
Specification Unit XL6136 XL6136C XL6136CL
Spindle taper - 7:24 ISO50
Distance between spindle nose and table mm 20-480 20-470
Distance from spindle axis to arm mm 175
Spindle speed range - 12steps 60~1800r.p.m
Table size mm 1250X360 1500X360
Table travel(X/Y/Z) mm 800/320/460 1000/320/450 1200/320/450
Table feed(X/Y/Z) mm/min 30-750 / 20-500 / 15-375
Table rapid speed (X/Y/Z) mm/min 1200/800/600
T-slots(NO:/width/pitch) mm 3/18/70
Arm travel mm 500
Main motor power kw 5.5
Torque of X/Y/Z axis AC servo motor N.m 10
Overall size mm 1800X2100X1870 2245X2100X1870 2520X2100X1870
Net weight kg 2050 2150 2260
