China Top Quality Rubber Vulcanizing Press/Rubber Press/Plate Curing Press (CE/ISO9001/SGS)

US$12,000.00
1 Set
US$11,000.00
2+ Sets

Basic Info.

Model NO.
CX-300B
Customized
Customized
Automatic Grade
Automatic
Structure
Horizontal
Character
Seal Completely.No Leakage for Oil
Temperature
High Precision, Tolerance 1 Degree
PLC
Both Automatic Control and Manual,You Choose
Standards
Completely Follow Ce and ISO9001:2008
Transport Package
Wooden Case Safety Packing
Specification
CE, ISO9001: 2008
Trademark
CX
Origin
China
HS Code
8477800000
Production Capacity
30 Sets/Month

Product Description

Model No.: CX300B
Name : Rubber vulcanizing machine, Rubber plate vulcanizing machine,rubber moulding machine,Plate vulcanizing press, Rubber moulding press, Rubber press machine, Rubber vulcanizing machine, Rubber vulcanizing pres,Rubber curing press,Plate vulcanizing press,Plate vulcanizing machine,Rubber hydraulic press.
Usage :The machine applies to vulcanizing various kinds of model rubber and plastic products as well as non-model products.
FEATURES
1- High precision for temperature,tolerance is +_1 degree

2- No oil ,pressure leakage,very seal completely.
3- PLC SIMENS automatic control, with alarm system for over-pressure,over-tempeature,vulcanizing time.
4- You can set the time and temperature , automatic control, when reach the time, the machine will stop heating ,automatic discharge for the pressure.
5- Crome plated for four collumn, at same time ,mirror polishing.
6- Famous brand hydraulic system, YUKEN,JAPAN.
7- Seal brand NOK,JAPAN
8- Vacuum pump : Busch, Germany
MAIN PARAMETERS:
Model
CX-100A

CX-100B

CX-160

CX-200

CX-250

CX-300

CX-400

CX-500

Mold-locking force(KN)

1000

1000

1600

2000

2500

3000

4000

5000

Max. working pressure(Mpa)

21

21

23

21

21

21

21

21
Heating plate size(mm)
450*450

500*500

520×540
520X540
or
600×600

600×600

700×700

800×800

1000×1000
Clamping stroke (mm) 250 250 250 250 300 300 400 500

Max.distance of two thermo-plate(mm)

400

400

420

420

430

400

700

700

Motor power(kw)

4+4

4+4

5.5+5.5

5.5+5.5

5.5+5.5

7.5+7.5

11+11

15+15

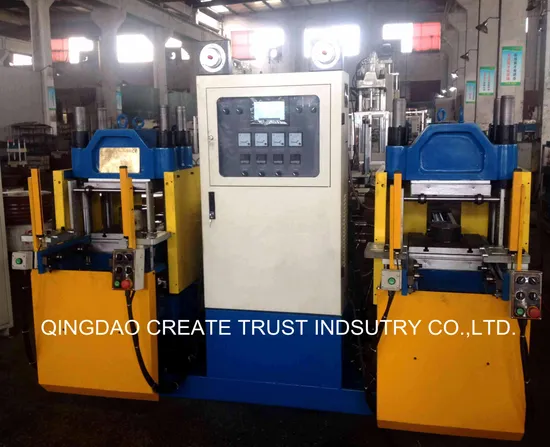

Production in our factory :
Service of us
1- We can design whole line machine for EVA sheet production. We also provide techncial for EVA sheet production, our engineer have rich experiences in this area. we go to your facotry to help intallation and guide the worker .
2- The production of all products are follow ISO9001:2008 organization system, from raw material processing to assembe and finally test running. even the packing, and delivery. Also we track the use of machine,installation, products producing technical ect.
All we do is for longterm cooperation , " CREATE TURST" !
