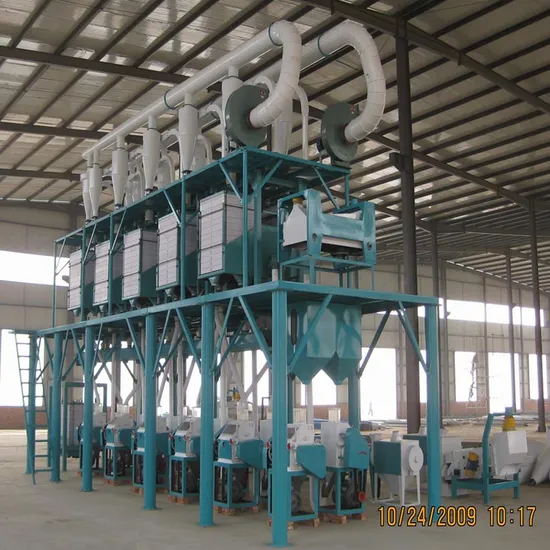

20t 30t 50t 60t Per Day Wheat Flour Mill

Product Description

Our flour milling machine are widely used for wheat , maize, corn ,sorghum, pepper etc. The structure is compact, the operation is simple and working efficnecy is high. The crushed material can be discharged directly from the grinding chamber of the host machine and the desired granule size can be obtained by installing screens with different apertures. The whole machine is made of high quality steel.
The inner surface of the enclosure becomes smooth through processing, thus changing the powder residual phenomenon due to the coarse inner surface of other machine.

1) 6FS-40 Model
The processing capacity: 260kg - 320kg per hour
Power: 11Kw
Weight: 1000kg
Dimensions: 2000mm X 1400mm X 3100mm
2) 6FS-50 Model
The processing capacity: 330kg - 400kg per hour
Power: 15Kw
Weight: 1280kg
Dimensions: 2600mm X 1400mm X 3100mm

compound flour mill machine
Model	FMFQ(S)50*2	FMFQ(S)60*2	FMFQ(S)80*2	FMFQ(S)100*2
Roller specification	Φ250*500mm	Φ250*600mm	Φ250*800mm	Φ250*1000mm
Use range of roller mill	Φ250-220mm
Fast roll speed	550 rpm
Grinding roller placement	horizontal
Pressure of work	0.4-0.6Mpa
Air Consumption of the mill	0.06-0.08m3/h
Feeding form	Double Roller
Roll ratio	2.5:1 2:1 1.5:1 1.25:1
Motor power	5.5-15kw	5.5-18.5kw	7.5-22kw	11-22kw
Weight	2400kg	2700kg	2900kg	3100kg
Size	1400*1410*1850mm	1500*1410*1850mm	1700*1410*1850mm	1900*1410*1850mm

Features of our wheat flour Mill:
1. Leading quality management system conform to ISO9001:2008 , ISO14000, CE.2. Whole set equipment can be designed as per customer's special request.3. we arrange engineers to help install the machine, which can ensure the machine operate efficiently.4. Lifespan of the machines can be more than 20 years.5. Perfect after-sales service is also supplied for all the machine.
6. Spare parts supply in time

---
