Product Details
Product Description
Product Description

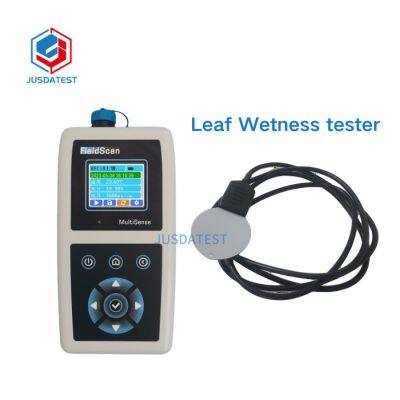

Handheld Leaf Wetness tester, RS485 Interface
Meter：
The FieldScan Series – MultiSense is a handheld readout device for use with our soil moisture sensors and environmental monitoring sensors made or sold. It interfaces with sensor with digital signal to obtain instantaneous results. This manual covers all MultiSense functions and capabilities.
Senser
LWS10 measures leaf wetness. It sealed with resin packaged plastic body can be used for long time monitor. Wetness measurement value is proportional to the percentage of sensing area covered with water. The sensor is applicable for science research, bacteria prevention, foliage dressing spraying, greenhouse, smart agriculture etc.
| Specifications |
| Output Interface | Analog Voltage 0-2V
(Output resistance ~0ohm)
| Analog Current 4-20mA
(Load Resistor<500ohm)
| RS485
Modbus-RTU
|
| Power Supply | 3.6-30V/DC | 12-30V/DC | 3.6-30V/DC |
| Power Consumption | 6mA@24V DC | 30mA@24V DC
(with 20mA output signal)
| 6mA@24V DC |
| Leaf wetness Measurement | Range: 0-100%, Resolution: 0.1%, Accuracy:5% |
| Temperature Compensation | Range: -40~80℃, Resolution:0.1℃, Accuracy:±0.5℃ |
| Measurement Technique | FDR |
| IP Ratings | IP68 |
| Operating Temperature | -40~85℃ |
| Sensor Sealed | Epoxy resin |
| Installation | Mounting kit |
| Cable Length | 2 meters or Customize |
| Dimension | 65*13*145mm |
| Parameters | Code | Comments |
Code 1:
Product Series
| LWS10 | LWS10 leaf wetness and temperature Sensor |
Code 2:
Output Interface
| A
B
C
D
E
F
G
| Analog Voltage 0-2V
Analog Current 4-20mA
RS485,Modbus-RTU
RS485,Modbus-RTU & Analog Voltage 0-2V
RS485,Modbus-RTU & Analog Current 4-20mA
SDI-12 (not available for now)
Customize
|
Code 3:
Power Supply
| A
B
C
D
E
| 3.6-30V DC (not applicable for 4-20mA output)
12-30V DC
2.7-16V DC (not available for now)
Customize
2.0-5.5V DC (not available for now)
|
Code 4:
Cable Length
| 002
XXX
| 2 meters
Customize, XXX is required cable length(Unit: meter)
|
Ordering Code Example:
Leaf wetness and temperature sensor, Output Interface RS485 Modbus RTU, Power Supply 3.6-30V DC, Cable Length 5 meters. Ordering Code is : LWS10 – C A 005
|
>>
