AT235 Bench-top Wet Spinning Machine is special design for researching new material in the field of textile, macromolecule and other material. It consists of mixing tank, dosing pump, filter, spinneret, coagulating bath, drawing roller, heating bath, drawing roller, setting bath, drawing roller and winding.
Specification
Model
|
| AT235
|
|
Mixing tank
|
| 1L or customized, 316L stainless steel
|
|
Sample volume
|
| 200~ 600ml or customized
|
|
Vacuum pump
|
| 0.18kW
|
|
Dosing pump flow rate
|
| 0.66CC/rev
|
|
Dosing pump power
|
| 180W
|
|
Dosing pump reducer
|
| 1:60
|
|
Spinneret
|
| 1
|
|

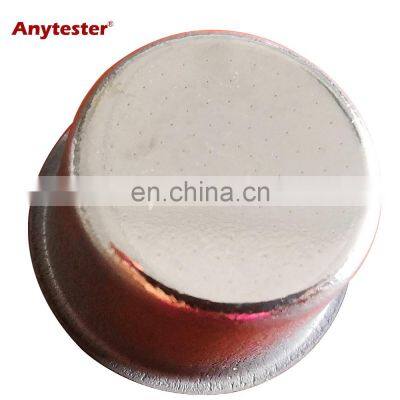

Spinneret plate
|
| 100 holes, hole dia.: 0.07mm
Material: tantalum
|
|
The Whole line length
|
| 5000mm
|
|
Power supply
|
| 200V, 50Hz
|
|
Coagulating bath
|
|
|
|
Size
|
| 1000*160*160mm
|
|
Heating power
|
| 0.6kW
|
|
Material
|
| 316L stainless steel
|
|
Drawing roller
|
|
|
|
Material
|
| Nylon or 316L stainless steel
|
|
Size
|
| Ø50×80mm
|
|
Reducer
|
| 1:10
|
|
Motor power
|
| 25w
|
|
Roller speed
|
| 2~40m/min adjustable
|
|
Heating bath
|
|
|
|
Type
|
| non-contact
|
|
Length
|
| 400mm
|
|
Heating power
|
| 250W
|
|
Temp. range
|
| 20~150℃
|
|
Sensor
|
| PT100
|
|
Setting bath
|
|
|
|
Type
|
| non-contact
|
|
Length
|
| 800mm
|
|
Heating power
|
| 250W
|
|
Temp. range
|
| 20~150℃
|
|
Sensor
|
| PT100
|
|
Winder
|
|
|
|
Speed
|
| 2-40m/min
|
|
Size
|
| Ø50×80mm
|
|
Transverse displacement
|
| 55mm
|
|
Futures
★ 316l Stainless steel frame, durable and nice
★ Mini size, save space
★ It can simulate the whole process
★ Thermal system for mixing tank is selectable
★ Heating bath can adopt air heating or water heating, it's selectable.
★ The whole line adopt quick joint connecting, it's easy to assemble.
