| US$160.00-240.00 | 1 Piece (MOQ) |
| Product Features | |
| Switch Parameters | ||
| Network Interface | ||

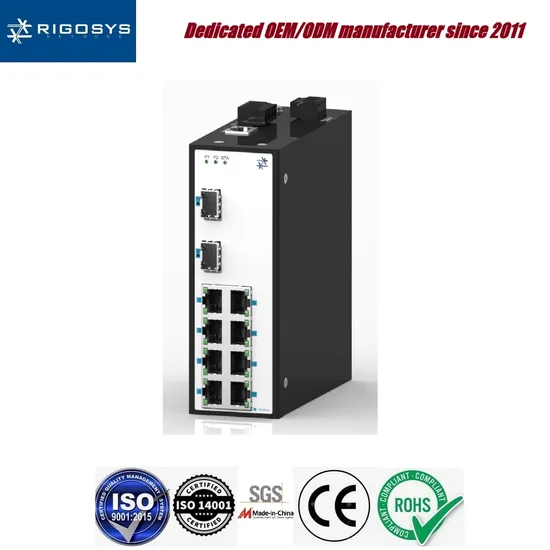

| Port Description | RIS5010-8T : supports 8 10/100Base-TX Ethernet ports RIS5010-8T2F : Supports 8 10/100Base-TX Ethernet ports and 2 100M SC/ST/FC optical ports RIS5010-8T2P: supports 8 10/100Base-TX Ethernet ports and 2 100M SFP slots | |
| Power Supply | ||
| Power Input | Low voltage DC power supply: Dual redundant power supply, range DC1 2 ~48V High voltage AC/DC power supply: Single channel, 85-26 4 VAC/100-300VDC isolated power supply, 4 -pin terminal | |
| Power consumption | <15W | |
| Protect | Support overload protection, reverse connection protection and redundancy protection (LV) | |
| Technology | ||
| Ethernet Specifications | IEEE 802.3i: 10Base-T IEEE 802.3u: 100Base-TX and 100Base-FX IEEE 802.3x: Flow Control IEEE 802.3ad: LACP (Link Aggregation Control Protocol) IEEE 802.1D: STP (Spanning Tree Protocol) IEEE 802.1p: COS (Class of Service) IEEE 802.1Q: VLAN Tagging IEEE 802.1w for RSTP (Rapid Spanning Tree Protocol) IEEE 802.1s for MSTP (Multiple Spanning Tree Protocol) IEEE 802.1AB for LLDP Link Layer Discovery Protocol | |
| MAC address table | 8K | |
| Priority Queue | 8 | |
| Jumbo Frames | 10K Bytes | |
| Processing | Store and Forward | |
| Switch Features | Switching delay time: <10μs Switch backplane bandwidth: 5.6 Gbps Packet buffer: 4.1Mbit Number of VLANs: 4094 IGMP multicast groups: 512 Support port speed limit | |
| Safety Features | A CL access control list CPU attack protection ARP Security Configuration IP source attack prevention MAC-based port security mechanism DHCP-Snooping HTTP S / SSH Enhanced Security Protocol RADIUS security authentication Network isolation via VLAN (802.1Q) SNMP v1/v2c/v3 encryption authentication and access control | |
| Software Features | Support IPv4 and IPv6 static unicast routing Support DHCP client Support DHCP snooping Support MSTP/RSTP/STP Support pvtring : switching time < 50ms Support QoS (802.1p/DSCP) traffic priority management Support VLAN (802.1Q) with VLAN tagging Support Q INQ Support IGMP v1/v2 (IGMP snooping) multicast management Support LLDP Support SNMP v1/v2/v3 encryption authentication and access control Support RMON Support ACL Support port isolation Support port speed limit Support port loopback detection Support storm suppression Support port mirroring Support port aggregation (Trunk/LACP) Support port traffic monitoring and traffic statistics Support static MAC binding Support port flow control function Support SNTP network clock Support RTC Support Syslog Support VCT Support TACACS+ | |
| Device Management | Support SNMP Support WEB network management (support HTTPS) Support DHCP-client Support user password protection Support command line configuration | |
| Network Redundancy | MSTP/RSTP/STP pvtring ERPS | |
| Warning/monitoring systems | Fault alarm via relay output Record and browse events through Syslog reporting Support SNMP to issue event warning notifications through trap | |
| Fault output | Relay output fault alarm : 1A@24VDC | |
| Console control port | RJ45 port, RS-232 control line, 115200bps-8-N-1 | |
| Mechanical Properties | ||
| Dimensions (W x H x D ) mm | 50 x 144 x 125 | |
| Shell | Metal | |
| Cooling method | Fanless design, natural heat dissipation | |
| Protection level | IP40 | |
| Installation | Default guide rail, optional wall mount | |
| Weight (g) | ≤1KG | |
| Environment | ||
| Storage temperature | -40~85 ºC | |
| Operating temperature | -40~75 ºC | |
| Operating humidity | 5%~95% no condensation | |
| Certification | ||
| EMI | FCC Part 15, CISPR (EN55022) class A | |
| EMS | EN61000-4-2 (ESD) EN61000-4-3 (RS) EN61000-4-4 (EFT) EN61000-4-5 (Surge) EN61000-4-6 (CS) | Contact discharge 6 kV, air discharge 8 Kv 10 V/m, 80MHz~ 1 GHz 1 kV for signal terminal, 2 kV for power input terminal Power input: 2kV (line/ground), 1kV (line/line) 10 V, 150 kHz to 80 MHz |
| Shock | IEC60068-2-27 | |
| Fall | IEC60068-2-32 | |
| Shock | IEC60068-2-6 | |
| Security Level | EN 62368-1 (LVD) | |
| Warranty Period | 5 years | |
| Switch Size | |
