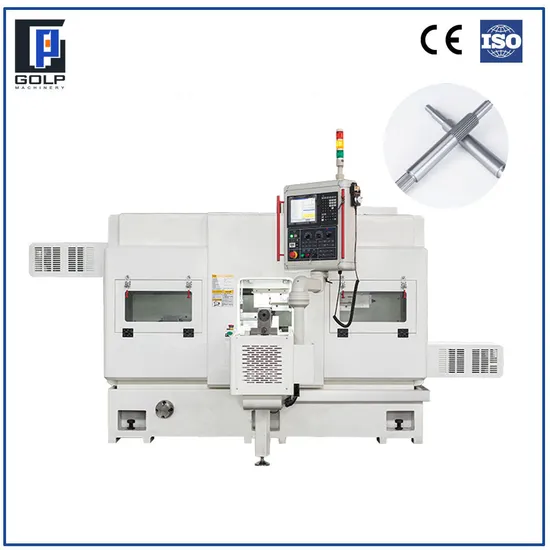

Max Module 2mm Hydraulic Model Horizontal CNC Gear Roller Spline Rolling Machine

Product Description

Single-stage or multi-stage forming, 13 to 36-inch horizontal standard reinforced servo or hydraulic gear rolling machine for precision chipless cold forming of involute (straight, helical, tapered, missing, parallel) splines, worms, threads, meshes, straights, oil grooves and other precision machining of involute (straight, helical, tapered, missing, parallel) teeth on shaft parts up to 1.5 modulus. High rigidity, precision, high efficiency, environmental protection, can be equipped with truss or articulated robots, support automated linkage.

ITEM	LC800A	LC1000A	LC1000EA	LC1500A	LC2000EA
max module (mm)	1.3	1.5	1.5	1.75	2
max out diameter (mm)	Φ40	Φ50	Φ50	Φ60	Φ70
max tool width (mm)	80	100	100	120	150
max workpiece length (mm)	1000	1000	1000	1000	1000
max installing tool width (mm)	300	300	300	300	300
the open part size (mm)	139.7	139.7	139.7	152.4	177.8
tool size (inch)	24 or 16 or 13	36 or 24,13	36 or 24,13	48 or24,24or13,36	60or36,36or24,48
max travel (mm)	800	1160	1160	1560	2100
weight (kg)	10000	13000	13000	18000	23000
length x width (mm)	2400*4400	3200*4400	4800*3400	4000*4600	6400*3800
drive way	hydraulic	hydraulic	CNC	hydraulic	CNC
special specifications can be customized.

You can click on the image above for details.
WUXI GOLP CNC MACHINERY CO,.LTD is located in WUXI the core location of the Changjiang Delta which is the most dynamic economy area in China. We are a new brand company specializing in the CNC machine tool industry. The company is mainly engaged in CNC grinding machine,Die-casting machine, gear shaping machine, gear grinding machine ,gear chamfering machine ,gear measuring centering machine and other new intelligent machine and related supporting products. The company adheres to the business philosophy --Professional quality, Credibility first, Customer first, and is committed to the development goal of becoming an important member of the global market in the field of intelligent machines.
Q:What's your payment terms?
A:T/T,L/C,Paypal,Western Union etc.
Q: How long is the product warranty?
A: 24 months
Q: Are you a trading company or a manufacturer?
A: We are a professional manufacturer. Our products have been exported to Asia, South America, Africa, and have developed a good world wide reputation.
Q: What kind of product certification do you have?
A: All our products have passed ISO9001 and CE certifications. We have strict quality inspection process before leaving our factory in order to offer the best quality machines to our customers.
Q: Do you have after sales service?
A: Yes, we have special service team which will offer you professional guidance, or On-site installation in customer Factory.
Q: Do you test all your goods before delivery?
A: Yes, we have strict quality inspection process including a load test for every machine before leaving our factory.

---
