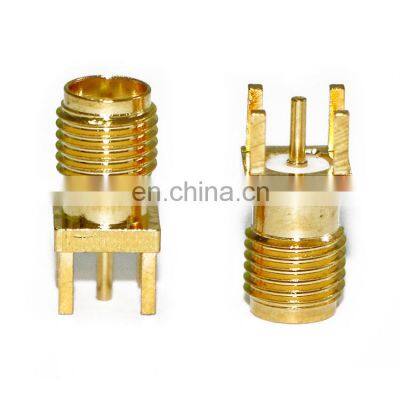

Goldplated right angle cable assembly connector sma

Product Description

Product Description

Goldplated right angle cable assembly connector sma
connector sma
Specifications1.Body:Brass/Gold Plated 2.Insulator: PTFE
3.Impedance:50 ohm
4.Frequency Range:0-18G Board to board SMA connector we can supply all kinds of RF coaxial connectors liking SMA , SMB, MMCX, MCX, BNC, TNC, UHF, HFL, IPEX and so on.we are of factory price .we welcome OEM /ODM clients.

Model	FT-Connector-117P
Major Technical Characteristics
Type	SMA-KWE-117P
Impedance	50Ω
Frequency Range	DC~12.4GHz(Semi-Rigid Cable DC-18GHz)
Center conductor retention force	≥0.28 N
Insertion Loss	≤0.15dB/6GHz
Voltage Standing Wave Ratio	Straight Flexible Cable ≤1.10+0.02f Semi-Rigid Cable≤1.07+0.018f
	Right angle Flexible Cable ≤1.20+0.03f Semi-Rigid Cable≤1.17+0.02f
Durability(mating)	≥500(cycles)
Cable	PCB
Material & Plating
Body	Brass	Gold plated
Pin contact	Brass	Gold plated
Socket contact	Beryllium-copper Customized)	Gold plated
Resilient contact	Beryllium-copper	Gold plated
Insulator	PTFE
Crimp ferrule	Copper alloy	Nickel or gold plated
O-ring sealing	6146 silicone rubber

RP connector can not match regular connector , RP means Reverse polarity.
SMA type are with 4 kinds type usually, for example :
SMA male is inside screw with plug center,
SMA female is outside screw with hole center,
RP SMA male is inside screw with hole center,
RP SMA female is outside screw with plug center.
