Hot Sale Factory Price Plasma Sputtering Coater with 1/2/3 Target

Product Description

Hot sale factory price plasma sputtering coater with 1/2/3 target
Product Description

1. This type of small plasma sputtering coating machine adopts single-stage sputtering method, which is widely used for SEM
sample preparation or metal coating experiment.
2. Using low-temperature plasma sputtering process, there is no high temperature during the coating process, thermal damage is
barely happen.
3. This small plasma sputtering coater uses PLC +touch screen control system, easy to operate. a rotatable sample stage is
equipped.
4. It comes with small size, suitable for lab research process.



Product Parameters

Product model	TN-PLZ180-III-DC-Q
Sample stage	Size	100mm
	Distance from sample stage to target surface	20~35mm height adjustable
	Rotating speed	1~20rpm adjustable
	Heating temperature	≤500ºC
	Temperature control accuracy	±1ºC PID temperature control
Plasma sputtering source	Quantity	2 inchesx1/2/3
	Cooling method	Water cooling/Natural cooling
Vacuum chamber	Chamber size	φ180mm x 200mm
	Observation window	Omnidirectional visibility
	Chamber material	High purity quartz
	Open method	Top cover removable
	Upper and lower cover material	304 stainless steel
	Pumping port	KF16
	Intake port	1/4 inch ferrule connector
Power configuration	Quantity	DC power supplyx1
	Output power	Max. 150W
	Sputtering power	1200V
	Max. sputtering current	50mA
Vacuum system	Vacuum pump type	Dual-stage rotary vane vacuum pump
	Pumping port	KF16
	Exhaust interface	KF16
	Pumping rate	1.1L/s(4m3/h)
	Ultimate vacuum	≥0.1Pa
	Vacuum measurement	Resistance vacuum gauge
Others	Power supply	AC 220V 50Hz
	Total power	1.5kW/2kW
	Dimension	570mm * 450mm * 500mm
	Weight	30kg

Detailed Photos
Notes:
1. We have plasma sputter coater with 1/2/3 target,
2. Water cooled target, rotation substrate is optional
3. Heating substrate is available
Single target plasma sputter coater

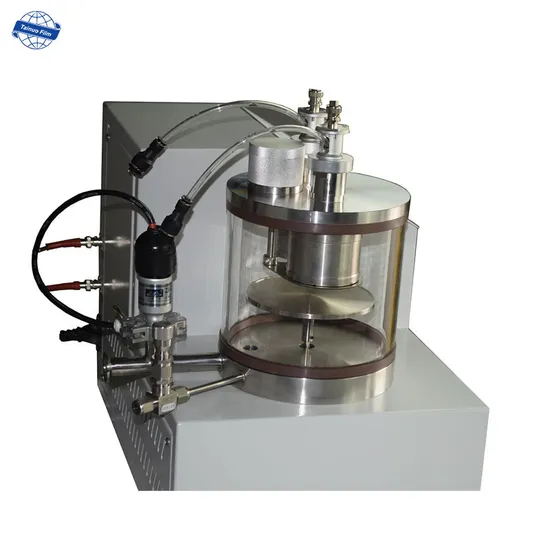

Dual target plasma sputter coater
Triple target plasma sputter coater



Company Profile

FAQ
Q. Are you a manufacturer or a trading company?
A. We are professional laboratory instrument manufacturers, having our own design team and factory, with mature technical experience, and can guarantee the quality of products and the optimal price. Q. How is your company's product after-sales service system? A. The product warranty period is 12 months, we can provide lifetime maintenance. We have professional pre-sales and after-sales departments that can respond to you within 24 hours to resolve any technical issues. Q. How long is your delivery time? If I want to customize the instrument, how long does it take? A.1. If the goods are in stock, it is 5-10 days. 2. We can provide customized services for our customers. It usually takes 30-60 days depending on the specifications of the custom instrument. Q. Our country's power supply and plug are different. How do you solve it? A. We can supply a transformer and plug according to your local requirements according to the power plug of different countries. Q. How to pay? A.T / T, L / C, D / P, etc., it is recommended to use Made in China Trade Guarantee. Q. How is the package of goods? Delivery methods? A.1. Standard export fumigation sign wooden box packaging 2. Express, air, sea shipping according to customer requirements to find the most suitable way. More questions, please contact me.

---
