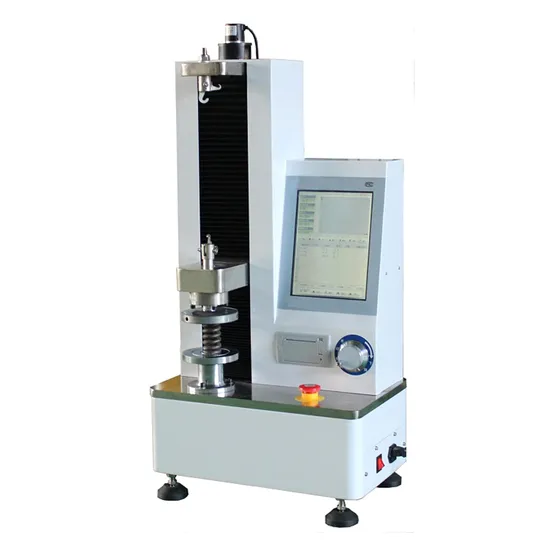

High Precision 1000n Desktop Model Full Touch Screen Spring Tension Testing Machine

Product Description

High precision 1000N desktop model full touch screen spring tension testing machine1000N desktop model
Product Description
The host part draws on the design concept and appearance structure of domestic and foreign manufacturers, and is designed in strict accordance with the industry standards of the national Ministry of Machinery. The structure and stiffness of the whole machine are designed and manufactured in strict accordance with the requirements of spring testing. It has the characteristics of beautiful appearance, large stiffness, reasonable structure, convenient test and easy maintenance. Different from the ordinary electronic tensile testing machine of domestic manufacturers, the whole machine uses three pillars with high precision ball screw, the pressure plate and the tensile hook are also separately designed and special treatment (HRC hardness of more than 50), so that the processing accuracy, strength and stiffness of the whole machine are much higher than the electronic tensile testing machine model.
Product Parameters

Specification	500,1000N,2000N	Measuring range	0-100%
Column structure	Three uprights with ball screw	Minimum reading value of the test force	500N/0.01N 1000N-2000N/0.1N
Working mode	loading motor,ball screw drive	Relative error of test force indication value	±1.0%
Display mode	7 inch industrial touch screen	Repeatability error of test force indication value	1.0%
Data processing	Automatic collection, processing, can save, query, print	Displacement resolution	0.01mm

Space of Tension	300mm	Maximum test speed	500mm/min
Compression space	300mm	Maximum reset (disk combination) speed	500mm/min
Clutch plate diameter	100mm	Testing machine size	435*275*850mm
Parallelism of upper and lower pressure plates	≤0.05mm	Net weight	100kg
Speed range of testing machine	0.01-500mm/min	Power supply	AC 220V±10% 50Hz

Features
a) The electrical control circuit refers to international standards, meets the national testing machine electrical standards, and has strong anti-interference ability to ensure the stability of the controller
Qualitative, experimental data accuracy
b) Automatic shift: automatically switch to the appropriate range according to the load size to ensure the accuracy of the measurement data; The real sense of physical zero adjustment, gain adjustment and test force measurement of automatic shift, zero adjustment, calibration and saving, without any analog adjustment
The control circuit is highly integrated
c) Conditional storage: test control data and sample conditions can be made into modules, which facilitates the batch test
d) Automatic transmission: the speed of the moving beam during the test can be changed automatically according to the pre-set program, or can be changed manually
e) Automatic calibration: The system can automatically realize the calibration of indicating value accuracy
f) Automatic saving: After the test, the test data and curves are automatically saved
g) Process realization: the test process, measurement, display and analysis are all completed by the microcomputer
h) Batch test: for the samples with the same parameters, it can be completed successively after one setting
i) Test software: Chinese WINDOWS interface, menu prompt, mouse operation
Company Profile
Certifications
Our company has successively obtained ISO9001 certificate, CE certificate, electro-hydraulic servo pressure testing machine, electro-hydraulic servo universal testing machine, electronic universal testing machine and other types of testing machine type evaluation certificate, and the member of the national steel structure industry association.
Our Costumers
With the spirit of honest and unsophisticated craftsman, patience, perseverance, and original heart, we are striving for excellence and creating excellence. Customer first is our service concept; Learning, service, unity, wisdom and dedication are our corporate culture; Creating and building a well-known brand of testing machine in China and even the world is our ultimate pursuit. We firmly believe in, stick to and strive for it. At the same time, we are willing to lead the development of the company, and contribute to the development of the testing industry in the motherland and the world.
Packaging & Shipping
FAQ
1. Are you a manufacturer?
Yes, we are one of the largest manufacturer of every kinds of testing machines in China. In general, every machine shipped from our factory provides 12 months of free maintenance, taking into account shipping reasons. We can extend the maintenance period for our customers for 2 months.
2. Do you have after-sales service? How can I ask? What about warranty?Before the delivery of the equipment, we will carry out the factory inspection and the equipment will be shipped after the inspection. If your machine does not work properly, you can contact us and we will try our best to communicate with you via email or skype video chat. We promise we will reply to you within 24 hours and with 3 Within a working day to provide solutions. After confirming that it is really necessary, we can send you new parts or on-site maintenance.The service does not include mechanical failure due to the following reasons:(1) Wrong operation;(2) Privately modified;(3) Failure caused by non-equipment itself(4) Use environment that is not suitable for equipment operation. Such as high temperature, humidity, corrosive gas or vibration.(5) Problems caused by movement or transportation.(6) Consumable components.(7) Natural disasters
3. What is the delivery deadline?Most of the time, we have inventory at the factory. If not, the delivery time is usually 15 to 20 days after receiving the payment. If you need it urgently, we can consider making special arrangements for you.
4. What kind of packaging and transportation do you use?Under normal circumstances, we will use ordinary orders such as DHL, Fedex, UPS TNT transport. Large orders will use aviation or shipping.
5. Can the device be customized? Can I customize my own design on the device?We can not only provide standard machines, but we can also provide customized machines according to your needs.At the same time, we can also place your trademark on the machine.

---
