US$18,000.00-40,000.00
|
1 Piece
(MOQ)
|
Basic Info.
Process Usage
Metal-Cutting CNC Machine Tools, CNC Non-Conventional Machine Tools, Metal-Forming CNC Machine Tools
Movement Method
Linear Control
Control Method
Closed-Loop Control
Numerical Control
CNC/MNC
Processing Precision
0.03~0.04(mm)
Performance Classification
High-End CNC Machine Tools
Processing Material
Hard Metals, Soft Metals, Alloys, Steel Structure
X / Z / Y Axis Travel
1100*650*600mm
X/Y/Z Axis Feed Speed
48/48/48
Transport Package
Plywood Case
Specification
2700*2500*2750
Production Capacity
2000 Sets Per Month
Product Description
Revolutionize your workshop with our High Precision 3/4/5 Axis CNC Milling Machine, specifically crafted for tackling Hard Metals and Alloys with unmatched accuracy.
Product Description

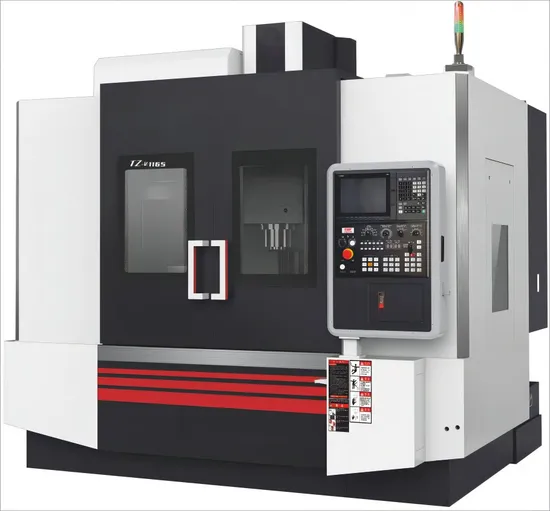

Introducing the TZ-V1165 Line Rail Vertical Machining Center, a remarkable breakthrough in modern CNC engineering. This advanced machine embodies cutting-edge features such as ergonomic design, precision craftsmanship, and state-of-the-art automation technology. Each unit undergoes exhaustive engineering simulations and prototype evaluations, guaranteeing its adaptability across rigorous sectors like medical, UAV, new energy auto parts, precision fixtures, and automation equipment parts. Embrace the future of mass production with high-precision components, offering unparalleled reliability and efficiency.
Product Parameters
Model | TZ-V640 | TZ-V850 | TZ-V855 | TZ-V1165 | TZ-V1270 |
Worktable size L*W | (mm) | 700x420 | 1000x500 | 1000x550 | 1100x530 | 1200x600 |
Work table Max. loading | kg | 350 | 400 | 500 | 500 | 600 |
T-slots size (N×W×D) | mm | 3x18x125 | 5x18x90 | 5x18x90 | 5x18x90 | 5x18x100 |
X/Y/Z axis travel | mm | 600/400/450 | 800/500/500 | 800/500/550 | 1100/650/600 | 1200/700/700 |
X/Y/Z axis feed speed | m/min | 48/48/48 | 48/48/48 | 48/48/48 | 48/48/48 | 48/48/48 |
X/Y/Z axis motor | kw | 1.5/1.5/3 kw | 2/2/3 kw | 2/2/3 kw | 2/2/3 kw | 3/3/3 kw |
X/Y/Z axis roller Guide | mm | 30/30/35 | 35/35/35 | 35/45/45 | 35/45/45 | 45/45/45 |
Spindle taper | | BT40 | BT40 | BT40 | BT40 | BT40 |
Max. spindle speed | rpm | 12000 | 12000 | 12000 | 12000 | 12000 |
Spindle motor power | kw | 7.5 | 7.5/11 | 7.5/11 | 7.5/11 | 11 |
Distance from spindle nose to workbench | mm | 150-610 | 120-620 | 120-670 | 150-750 | 140-840 |
A.T.C capacity | pcs | 24 | 24 | 24 | 24 | 24 |
Positioning accuracy (X/Y/Z) | mm | ±0.005/300 | ±0.005/300 | ±0.005/300 | ±0.005/300 | ±0.005/300 |
Re-positioning accuracy(X/Y/Z) | mm | ±0.003/300 | ±0.003/300 | ±0.003/300 | ±0.003/300 | ±0.003/300 |
Machine weight | kg | 4300 | 5000 | 6000 | 6800 | 8100 |
Machine size (L*W*H) | mm | 2000*2400*2600 | 2500*2250*2650 | 2600*2500*2650 | 2700*2500*2750 | 3100*2760*3100 |
Picture of the machine
Main Parts | Branch/ Origin |
CNC System | M80B Mitsubishi/ Japan |
Spindle and three-axis servo motor | Mitsubishi/ Japan |
Spindle | Dejiu TAIZ/ Taiwan |
Ball screw | Yintai or Shangyin/ Taiwan (C3) |
Screw bearing | P4NSK/ Japan |
Rail | Yintai or Shangyin/ Taiwan (P) |
A.T.C capacity | TAIZ or Deda/ Taiwan |
Body casting | High density and high strength resin sand cast iron |
Coupling | R+W\NBK / German |
Electrical components | Franch |
Handwheel pulse | East Test/Internal Security Control / Janpan |
Pneumatic components | Taiwan AirTAC/ Japan SMC |
Anoher Advantages
Immerse yourself in an environment of superior processing conditions and optimized production, meticulously engineered for perfection.
Our cutting-edge facility boasts imported horizontal and vertical machining centers, CNC boring machines with rotating tables, and gantry guideway grinding machines. This setup guarantees flawless accuracy in every workpiece, elevating assembly precision and ensuring the longevity of the final product.
Advanced Detection Methods
Employing precise positioning accuracy tests coupled with advanced laser technology corrections, we comply with stringent German VDI3411 inspection standards, executing these thorough checks five times to achieve unparalleled precision.
Prior to departing our factory, each machine tool is subject to rigorous processing side tests, certifying its capacity to meet real-world processing demands and achieve the precise accuracy expected.
Product sample
• Our CNC machine center is a hub of innovation, effortlessly integrating milling, drilling, and tapping functions for maximum versatility.
• Elevate your machining prowess with our CNC machine, adept at processing a wide range of metal profiles, including aluminum, steel, copper, alongside non-metal materials.
• CNC Vertical Machine tools have become essential in varied industries such as 3C electronics, rail transportation, aerospace, and liner module guide rail industries,and beyond, catering to the dynamic requirements of contemporary engineering.
Packaging & Shipping
•Highly Protective
•Structural Stability
•Environmentally Friendly and Recyclable
Professional Team
FAQ
1. What are the Payment Terms?
A: We accept T/T, with 40% initial payment upon order and 60% balance payment before shipment.
2. What trade terms do you offer?
A: We offer FOB, CFR, and CIF terms.
3. What is the delivery time?
A: For standard machines, the delivery time is within 30 days. Special machines may require additional time. You can place your order based on the provided delivery and shipping times.
4. What is your minimum order quantity and warranty?
A: The minimum order quantity is one set, with a one-year warranty.
5. How are the machines packaged?
A: Machines are standardly packed in wooden cases.
6. How can I choose the most suitable machines?
A: Please provide your specifications, and we will recommend the best model for you. Alternatively, you can select the exact model yourself.
You can also send us product drawings, and we will help you choose the most suitable machines.
>>
