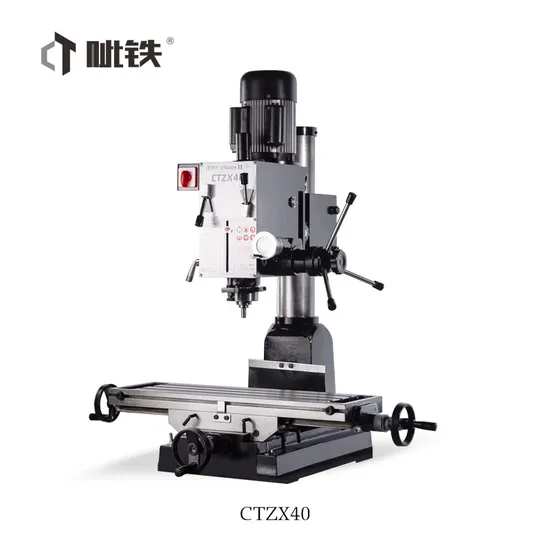

Ctzx40 Mini Milling Machine Manual Mills for Metal with Factory Price

US$1,516.00
1-4 Sets
US$1,456.00
5-9 Sets
US$1,395.00
10+ Sets

Basic Info.

Model NO.
CTZX40
Structure
Desktop
Milling Cutter Type
Three Blade Milling Cutter
Milling Cutter Structure
Inlaid Tooth
Controlling Mode
Artificial
Automatic Grade
Manual
Precision
High Precision
Certification
GS, CE, RoHS, ISO 9001
Condition
New
Transport Package
Standard Wooden Packing
Specification
1200*850*1100mm
Trademark
CTMACH
Origin
China
HS Code
8458190000
Production Capacity
10000

Product Description

Max.Drilling capacity 45mm
Max.milling capacity 60mm
Max.vertical milling capacity 20mm
Max. tapping M16
Table size 800x240mm
T-slots size 14mm
X spindle travel 580mm
Y spindle travel 200mm
Spindle taper MT4
Spindle travel 130mm
Distance from spindle to column guide rail 285mm
Distance from spindle end to table surface 430mm
Spindle box left&right rotation angle ±90
Spindle speed range 80~1250rpm
Motor Power 1.5KW
Net weight/Gross weight 305KG/320KG
Overall dimensions 1200x850x1100mm
Package Size 770x770x1180mm
